TB Woods AK8412

mpnAK8412
brandname: TB Woods
manufacturername: TB Woods

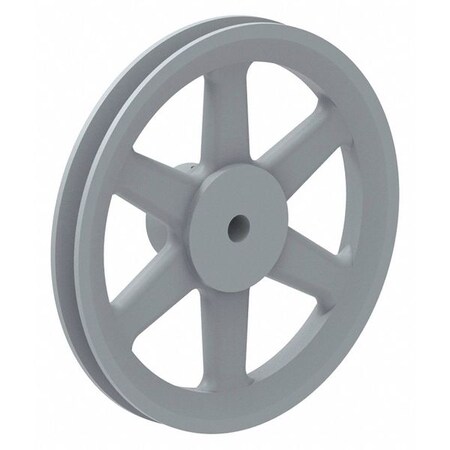

TB Woods AK8412 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 8.25" OD, 3040 max rpm

TB Woods AK8412 FHP Bored-to-size V-Belt Sheave, A Belt Section, 1 Groove, 1/2" Bore, Cast Iron, 8.25" OD, 3040 max rpm

zoom

Brand: TB Woods
PartNumber: AK8412
Model: 698672114585
Size: 3040 max rpm
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Belt section	A-4L-3L
Belt Section Size	3L ; 4L ; A
Bore Diameter	1/2 in
Bore type	Finished with no keyway.
Bore-to-size bore diame.	0.5
Component WR2 (lbs ft2)	0.22
Country of Origin (subj.	Multiple
Datum diameter	8
Dimension	0.72
Face width	0.75
Face width (in)	0.75
Groove cross section se.	A
Hub location	-0.72
Hub location (in)	-0.72
I.D.	7.88
Inertia WR?	23
Inside diameter (in)	7.88
Item	FHP Sheave,AK84 x 1/2
Material type	CI
Max RPM	3040
Number of Grooves	1
Number of grooves	1
O.D.	8.25
Outer Diameter	8.25 in
Outside diameter (in)	8.25
Pitch diameter	8.25
RPM upper limit	3040
Series	FHP AK Series
UPC Code	698672114585

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1537641	19.99	1	In Stock	11	Tb Woods	4.3	19.99 @ 1
	MRO Supply	346146	92.13	1	In Stock		TB Woods		92.13 @ 1
	us.rs-online.com	71667537	104.24	1	In Stock		TB Wood's (Altra)		104.24 @ 1
