- mpnAK8434
- brandname: TB Woods
- manufacturername: TB Woods

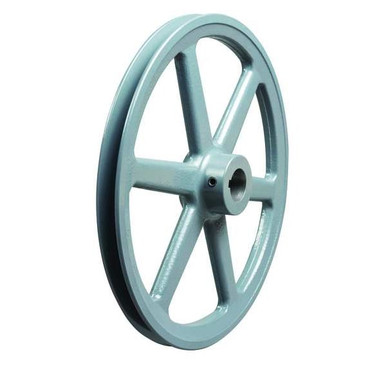

3/4" Fixed Bore 1 Groove Standard V-Belt Pulley 8.25 in OD
- Brand: TB Woods
- PartNumber: AK8434
- Model: AK8434
- PackageQuantity: 1
- Manufacturer: TB WOOD'S
- Label: TB WOOD'S
Attributes
| Key | Value |
|---|
| 3L Belt Pitch Dia. | 7.66 in |
| 3L Pitch Diameter | 7.91 in |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 8.25 in |
| 4L, A, or AX Belt Pitch. | 8 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 8.25 in |
| AX Pitch Diameter | 8.25 in |
| B Pitch Diameter | Not Applicable |
| Belt section | A-4L-3L |
| Belt Section and Type (. | 3L Cogged, 4L Classical. |
| Belt Section Size | 3L ; 4L ; A |
| Bore Diameter | 3/4 in |
| Bore type | Finished with keyway |
| Bore Type | Fixed |
| Bore-to-size bore diame. | 0.75 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | Not Applicable |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.22 |
| Construction | Arm |
| Current Stock | 57 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 8 |
| Dimension | 0.72 |
| Face width | 0.75 |
| Face Width | 0.75 in |
| Face width (in) | 0.75 |
| Fits Shaft Dia. | 3/4 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Trade Size | 3L, 4L, A, AX |
| For V-Belt Section | 3L, 4L, A, AX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | A |
| Hub location | -0.72 |
| Hub location (in) | -0.72 |
| Hub Projection | 0.72 in |
| Hub Type | One Side |
| I.D. | 7.88 |
| Includes | Set Screw |
| Industry Number | AK8434 |
| Inertia WR? | 23 |
| Inside diameter (in) | 7.88 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway | Yes |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| Keyway Width | 3/16 in |
| Length through Bore | 1 15/32 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 3040 |
| Maximum Bore Diameter | 1 11/16 in |
| Mpn | AK8434 |
| Number of grooves | 1 |
| Number of Grooves | 1 |
| O.D. | 8.25 |
| Outer Diameter | 8.25 in |
| Outside Diameter | 8.25 in |
| Outside diameter (in) | 8.25 |
| Overall Width | 1 1/2 in |
| Pitch Diameter | 8.25 in |
| Pitch diameter | 8.25 |
| Pitch Diameter for V-Be. | 3L: 7.91 in / 4L: 8.25 . |
| Pulley Bore Dia. | 3/4 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 8.25 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 3040 |
| Series | FHP AK Series |
| Set Screw Included | Yes |
| SKU | ZO-G1249001 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672093231 |
| UPC Code | 698672093231 |
| Weight | 4.7 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1249001 | 27.95 | 1 | 133 | | Tb Woods | 4.13 | 27.95 @ 1 |
 | simsupply.com | ZO-G1249001 | 43.76 | 1 | 57 | | Tb Woods | | 43.76 @ 1 |
 | bscsource.com | AK8434 | 44.19 | 1 | In Stock | | TB Wood's | | 44.19 @ 1 |
 | sustainablesupply.com | C2682767 | 47.71 | 1 | In Stock | | TB Wood's | 4.13 | 47.71 @ 1 |
 | Guardian | 82223686 | 50.27 | 1 | In Stock | | TB Wood's | | 50.27 @ 1 |
| grainger.ca | WWG5RJF3 | 53.17980562 | 1 | In Stock | | TB WOOD'S | 4.13 | 53.17980562 @ 1 |
 | National Supply Network | 82223686 | 56.54 | 1 | In Stock | | TB Wood's | | 56.54 @ 1 |
 | MRO Supply | 345779 | 83.32 | 1 | In Stock | | TB Woods | | 83.32 @ 1 |
| us.rs-online.com | 71667541 | 94.27 | 1 | In Stock | | TB Wood's (Altra) | | 94.27 @ 1 |
 | Raptor Supplies | AE6FMN | 104.80743 | 1 | In Stock | | TB WOOD'S | | 104.80743 @ 1 |
