TB Woods BK75

B003N17TXE

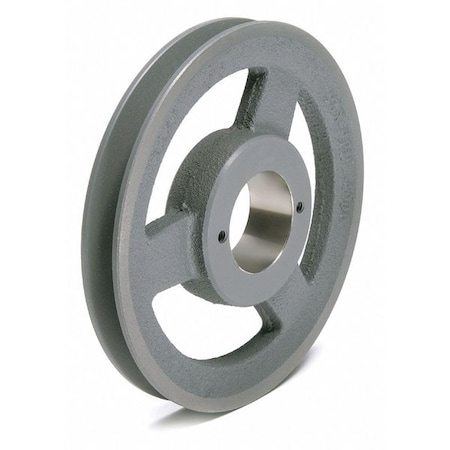

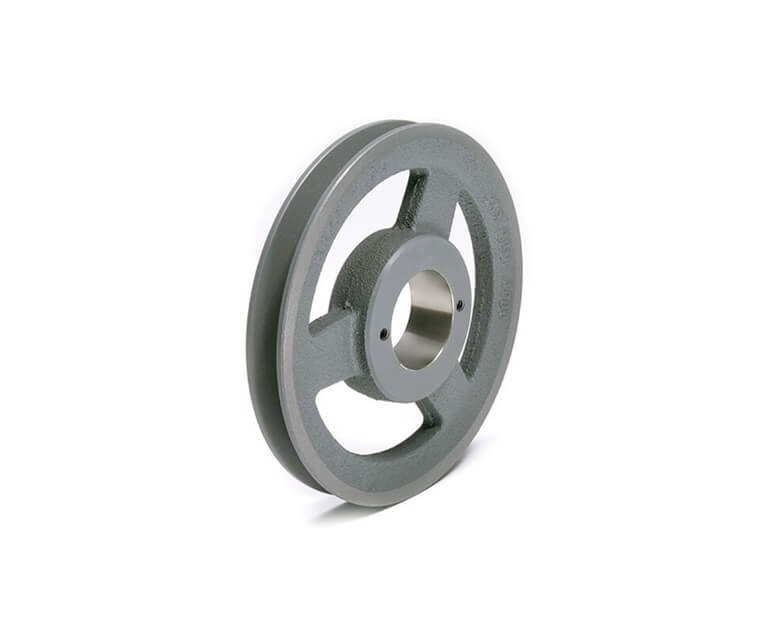

TB Woods BK75 FHP QT Bushed V-Belt Sheave, B Belt Section, 1 Groove, QT Bushing required, Cast Iron, 7.25" OD, 3450 max rpm

TB Woods BK75 FHP QT Bushed V-Belt Sheave, B Belt Section, 1 Groove, QT Bushing required, Cast Iron, 7.25" OD, 3450 max rpmzoom

Attributes

Key Value
3L Pitch DiameterNot Applicable
3V Pitch DiameterNot Applicable
3VX Pitch DiameterNot Applicable
4L Pitch Diameter6.88 in, 6.75 in
4L, A, or AX Belt Pitch.6.5 in
5L Pitch Diameter7.313 in
5L, B, or BX Belt Pitch.6.9 in
5V Pitch DiameterNot Applicable
5VX Pitch DiameterNot Applicable
A Pitch Diameter6.88 in, 6.75 in
AX Pitch Diameter6.88 in, 6.75 in
B Pitch Diameter7.313 in
Belt sectionB-5L-A-4L
Belt Section Size4L ; 5L ; A ; B
Bore SizeQD, QT
Bore TypeBushed
Bore typeQuick disconnect bushing
BrandTb Woods
BushingQT
Bushing RequiredQT
BX Pitch Diameter7.313 in
C Pitch DiameterNot Applicable
ColorGrey
Component WR2 (lbs ft2)0.16
ConstructionArm
Current Stock97
CX Pitch DiameterNot Applicable
Datum diameter6.9
Dimension0.5
Face Diameter7.25 in
Face width0.88
Face Width0.88 in
Face width (in)0.88
Fits Shaft Dia.1/2 in to 1-1/2 in
For Belt FamilyClassical, Classical Co.
For Belt Section (broad.4L, A, or AX, 5L, B, or.
For Belt Trade Size4L, 5L, A, AX, B, BX
For Bushing SizeQT
For Bushing TypeQuick Detachable
For V-Belt Section4L, 5L, A, AX, B, BX
For V-Belt TypeClassical, Cogged
Groove cross section se.B
Hub location-0.06
Hub location (in)-0.06
I.D.5.5
Industry NumberBK75
Inertia WR?17
Inside diameter (in)5.50
International ShippingNo
ItemStandard V-Belt Pulley
Length through Bore1 1/4 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM3450
Maximum Bore Diameter1 11/16 in, 1 1/2 in
Minimum Bore Diameter1/2 in
MpnBK75
Number of Grooves1
Number of grooves1
Number of Steps1
O.D.7.25
Outer Diameter7.75 in
Outside Diameter7.25 in
Outside diameter (in)7.25
Overall Width1 3/8 in
Pitch diameter7.31
Pitch Diameter7.31 in, Not Applicable
Pitch Diameter for V-Be.4L: 6.88 in / 5L: 7.313.
Pulley Bore TypeQuick Detachable Bushed.
Pulley ConstructionArm
Pulley MaterialCast Iron
Pulley Outside Dia.7.25 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit3450
SeriesFHP
Set Screw IncludedNo
SKUZO-G1660644
StandardsISO 9001:2015
SubCategoryPower Transmission
UPC698672200455
UPC Code698672200455
Weight3.2 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC268278435.291In StockTB Wood's3.435.29 @ 1
AmazonTPB003N17TXE37.531In Stock10TB Woods37.53 @ 1
AmazonUNKB003N17TXE37.531In StockTB Woods37.53 @ 1
thumbzoomZoroG166064439.491122Tb Woods3.439.49 @ 1
thumbzoombscsource.com8222269640.591In StockTB Wood's40.59 @ 1
grainger.caWWG5UHF541.174974381In StockTB WOOD'S3.441.17497438 @ 1
AmazonSCB00869XUVS49.971In StockTB Woods49.97 @ 1
thumbzoomsimsupply.comZO-G166064452.7197Tb Woods52.7 @ 1
thumbzoomNational Supply Network8222269652.81In StockTB Wood's52.8 @ 1
thumbzoomAmazonB003N17TXE55.071In StockTB Woods55.07 @ 1
thumbzoomMRO Supply34585975.631In StockTB Woods75.63 @ 1
us.rs-online.com7174316090.6715TB Wood's (Altra)90.67 @ 1
thumbzoomRaptor SuppliesAE6PMC101.80175851In StockTB WOOD'S101.8017585 @ 1
