mpn:
brand:
manufacturer:
MPN:
Description:
TB Wood's manufactures bushings, pulleys, couplings, and electronic motor controls. The company, founded in 1857 and headquartered in Chambersburg, PA, meets International Organization for Standardization (ISO) standard 9001:2008.</p></div>
Weight:
3.67
Weight:
14.8 LB
Preferred Price:
184.43
Price:
184.43
Min Simple Price:
104.2
Absolute Min Price:
147.96
Min Price:
147.96
Dimensions:
[8.0, 8.0, 5.0]
qty:
21
simpleSku:
NTcwMQ:::B004LB600S
sku:
NTcwMQ::0S:B004LB600S@y0
condition:
11
seller:
NRI Industrial
amzMan:
tb woods
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|

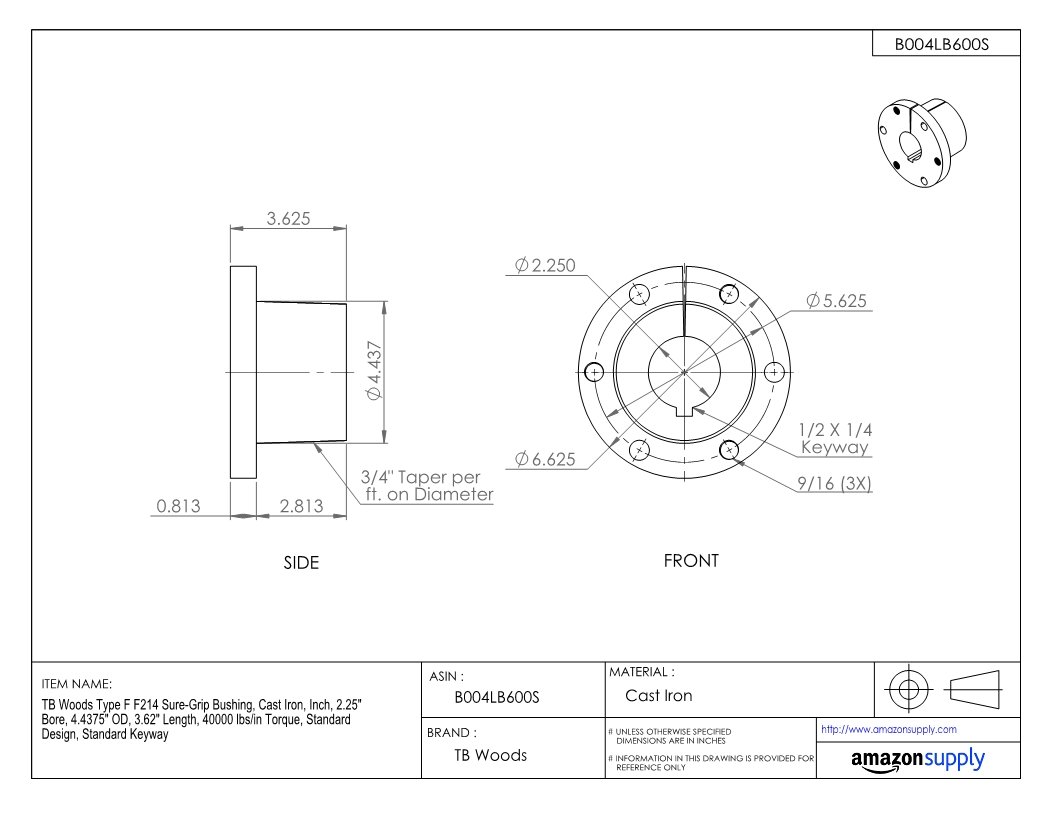

| Bolt circle | 5.63 |
| Bolt Circle Dia. | 5.625 in |
| Bolt Circle Diameter | 5.625 in |
| Bolt Size | 9/16"-12 x 3-5/8 in |
| Bore | 2.25 |
| Bore (in) | 2 1/4 |
| Bore Bushing Series | F |
| Bore Dia. | 2 1/4 in |
| Bore Diameter | 2 1/4 in, 2-1/4 in |
| Bushing Type | Quick Detachable |
| Capscrew designation (screw thread size) | 9/16 12 |
| Capscrew length | 3.625 |
| Design | Standard |
| Dimension | 3.63 |
| Hardware | Inch series |
| Includes | Cap Screws |
| Installation torque | 110 |

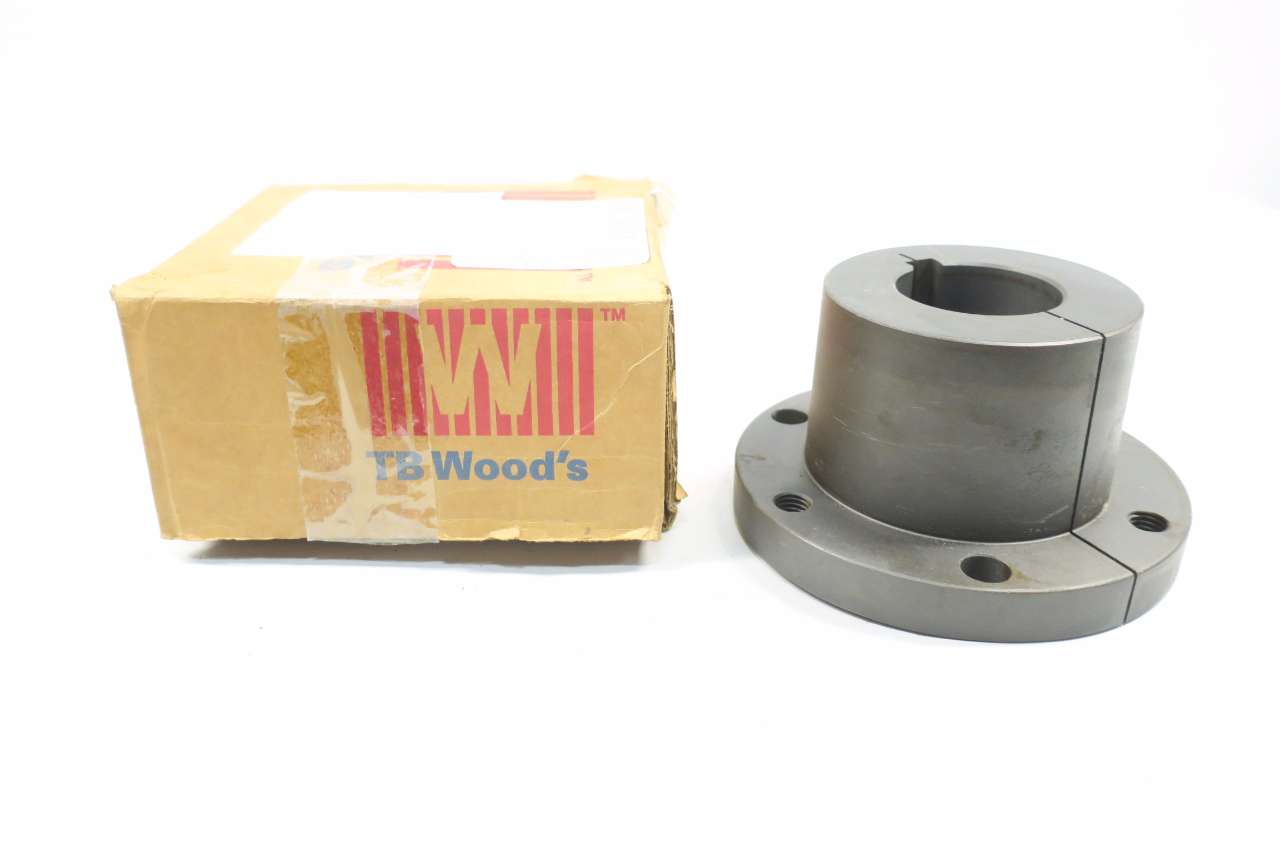

| Item | Quick Detachable Bushing |
| Item - Tapered and QD Bushings | Quick Detachable Bushing |
| Key size | 14 |
| Keyway | Standard |
| Length | 3.625 in |
| Length (Straight Wireway) | 3.625 in |
| Material | Steel, Iron |
| Mounting | STD or REV |
| Number of capscrews | 3 |
| Rating (in lbs) | 40000 |
| SAE Grade | 5 |
| Series | Sure-Grip QD Series, Sure-Grip? bushing |
| Size | F |
| System of Measurement | Standard |
| Taper | 3/4 in per ft On Diameter |
| TBW group no. | 11320 |
| Torque capacity | 40000 |
| Type | OD |
| UPC Code | 698672702713 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | NRI Industrial | D578625 | 104.2 | 104.2 | 1 | In Stock | TB WOODS | 104.2 @ Qty: 1+ | ||
 | Zoro | G3465734 | 128.99 | 128.99 | 1 | In Stock | 10 | Tb Woods | 14.9 | 128.99 @ Qty: 1+ |
 | bscsource.com | F214 | 165.49 | 165.49 | 1 | In Stock | TB Wood's | 165.49 @ Qty: 1+ | ||
| Grainger | 5YLR5 | 166.5 | 166.5 | 1 | In Stock | 11 | TB WOOD'S | 166.5 @ Qty: 1+ | ||
 | National Supply Network | 82225640 | 176.63 | 176.63 | 1 | In Stock | TB Wood's | 176.63 @ Qty: 1+ | ||
 | Guardian | 82225640 | 197.94 | 197.94 | 1 | In Stock | TB Wood's | 197.94 @ Qty: 1+ | ||
 | MRO Supply | 338342 | 208.51 | 208.51 | 1 | In Stock | TB Woods | 208.51 @ Qty: 1+ | ||
| us.rs-online.com | 71733823 | 235.87 | 235.87 | 1 | In Stock | TB Wood's (Altra) | 235.87 @ Qty: 1+ | |||
| motionindustries.com | 00217660 | 296.34 | 296.34 | 1 | In Stock | TB Woods (Altra) | 296.34 @ Qty: 1+ | |||
 | Raptor Supplies | AE7JDB | 338.490009 | 338.490009 | 1 | In Stock | TB WOOD'S | 338.490009 @ Qty: 1+ |
