TB Woods L075N

B072DR3QWJ

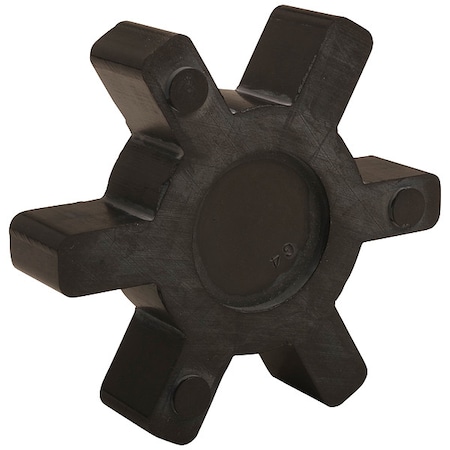

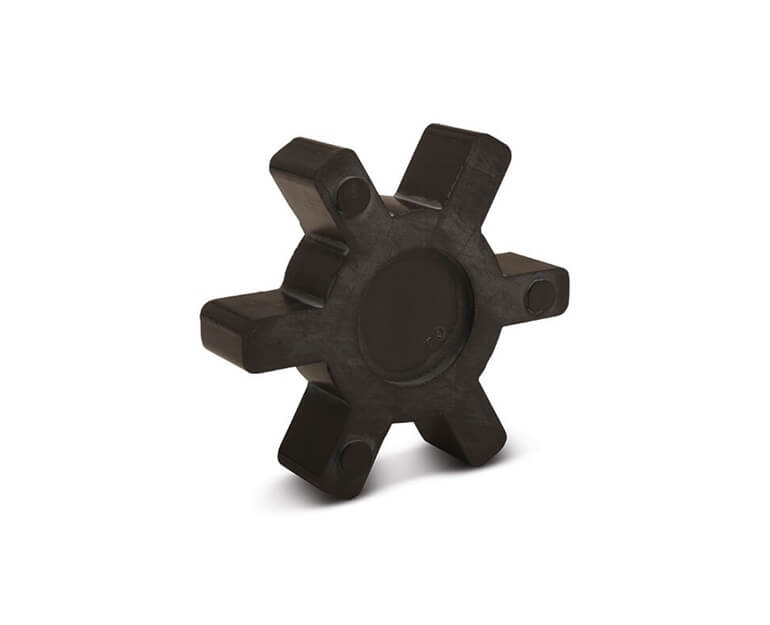

TB WOOD'S L075N L JAW SPIDER, FACTORY NEW!

TB WOODzoom

Attributes

Key Value
Accommodates1 Degrees Angular and .
BrandTb Woods
c0.5
Center holeSolid
Chemical resistancePoor
ColorBlack
Coupling SizeL075
Coupling sizeL075
Current Stock42
Dimension (in.) (OD)1.735
Element durometer80A
Element materialBuna-N
Element thickness1
Element typeSolid Center Spider
FlexibilityExcellent
Height (In.)0.44 in
Horsepower Rating at 10.38
HP Rating @ 100 RPM0.14
HP Rating @ 1200 RPM1.7
HP Rating @ 1800 RPM2.6
HP Rating @ 300 RPM0.4
HP Rating @ 3600 RPM5.0
International ShippingNo
ItemBuna N Spider Insert
Item - Jaw Coupling Spi.Jaw Coupling Insert
Jaw typeStraight
Length (In.)1.74 in
ltb0.81
materialBuna-N Spider
Material - SpidersBuna N
Material typeBuna-N, Black
Max angular misalignment1?
max bore7/8
Max compatible bore size0.875
Max parallel misalignme.0.015
max rpm11000
Max speed11000
Max. Bore (In.)0.875
Max. RPM11,000 RPM
Max. Torque (In.-Lbs.)90
Min compatible bore size0.25
MpnL075N
O.D.1.74
oal2.13
od1.75
Oil resistanceGood
Overall length2.13
Power rating at 100 RPM0.14 HP
Product familyL-Jaw Spider
Rated Torque90 in-lb
Serviceable Temp. Range.-40 to 212
Size - Jaw CouplingsL075
Size code75
SKUZO-G2233296
SubCategoryPower Transmission
Temp. Range-40 Degrees to 212 Deg.
Temperature rating-40?F to 212?F
Thickness0.435
Thickness (in)0.435
Torque90 in/lb
Torque (In.-Lbs.)90
torque in lbs90
Torsional stiffnessSoft
TypeBuna N Spider
UPC698672000055
Width (In.)1.74 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply3401246.4811In StockTB Woods6.48 @ 11
thumbzoomZoroG22332967.0511978Tb Woods0.037.05 @ 1
thumbzoomsustainablesupply.comC16750487.651In StockTB Wood's0.037.65 @ 1
AmazonTPB072DR3QWJ7.821In Stock2TB Woods7.82 @ 1
thumbzoomRaptor SuppliesAC3WNK11.96681851In StockTB WOOD'S11.9668185 @ 1
thumbzoomsimsupply.comZO-G223329614.03142Tb Woods14.03 @ 1
