TB Woods L099N

B0724Z9LXD

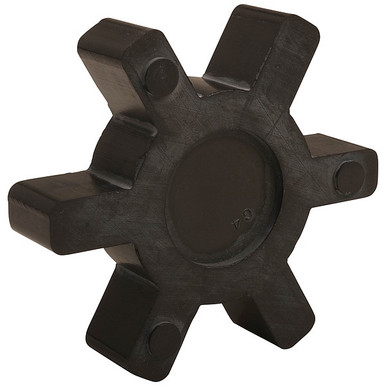

TB Woods L099/100N BUNA-N SPIDER (L099N)

TB Woods L099/100N BUNA-N SPIDER (L099N)zoom

Attributes

Key Value
Accommodates1 Degrees Angular and .
BrandTb Woods
c0.75
Center holeSolid
Chemical resistancePoor
ColorBlack
Coupling SizeL099/L100
Coupling sizeL099
Current Stock797
Dimension (in.) (OD)2.530
Element durometer80A
Element materialBuna-N
Element thickness1
Element typeSolid Center Spider
FlexibilityExcellent
Height (In.)0.61 in
Horsepower Rating at 10.44
HP Rating @ 100 RPM0.51 with AL/SS/L099 hu.
HP Rating @ 1200 RPM7.9
HP Rating @ 1800 RPM12
HP Rating @ 300 RPM2.0
HP Rating @ 3600 RPM24
International ShippingNo
ItemBuna N Spider Insert
Item - Jaw Coupling Spi.Jaw Coupling Insert
Jaw typeStraight
Length (In.)2.53 in
ltb1.06
materialBuna-N Spider
MaterialNitrile (Buna-N)
Material - SpidersBuna N
Material typeBuna-N, Black
Max angular misalignment1?
max bore1-3/16
Max compatible bore size1.1875
Max parallel misalignme.0.015
max rpm7000
Max speed7000
Max. Bore (In.)1.1875/1.4375
Max. RPM7,000 RPM
Max. Torque (In.-Lbs.)318/417
Min compatible bore size0.4375
MpnL099N
O.D.2.53
oal2.88
od2.53
Oil resistanceGood
Outside Diameter2 17/32 in
Power rating at 100 RPM0.51 (HP) with AL/SS/L0.
Product familyL-Jaw Spider
Prop 65Warning: This product c.
Rated Torque318 in-lb
Serviceable Temp. Range.-40 to 212
SizeL099
Size - Jaw CouplingsL099/L100
Size code99
SKUZO-G0952131
Spider Width0.61 in
SubCategoryPower Transmission
Temp. Range-40 Degrees to 212 Deg.
Temperature rating-40?F to 212?F
Thickness0.61
Thickness (in)0.61
Torque36 (Nm) with AL/SS/L099.
Torque (In.-Lbs.)318/417
torque in lbs318
Torsional stiffnessSoft
TypeBuna N Spider, Spider -.
UPC698672000079
UPC Code698672000079
Width (In.)2.53 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG095213117.0911923Tb Woods0.0517.09 @ 1
thumbzoomMRO Supply34016017.674In StockTB Woods17.67 @ 4
thumbzoomsustainablesupply.comC166272920.831In StockTB Wood's0.0520.83 @ 1
us.rs-online.com7165535122.51115TB Wood's (Altra)22.51 @ 1
thumbzoomsimsupply.comZO-G095213126.21797Tb Woods26.2 @ 1
motionindustries.com0051635828.581In StockTB Woods (Altra)28.58 @ 1
thumbzoomRaptor SuppliesAB4CVM30.6824311In StockTB WOODS30.682431 @ 1
