TB Woods L11042MM

mpnL11042MM
brandname: TB Woods
manufacturername: TB Woods

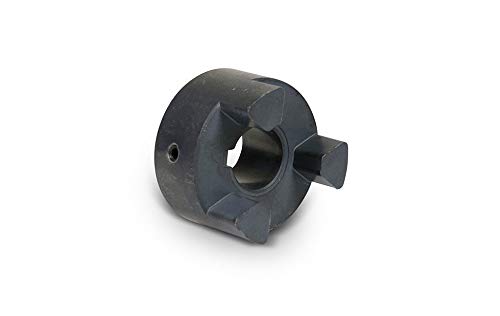

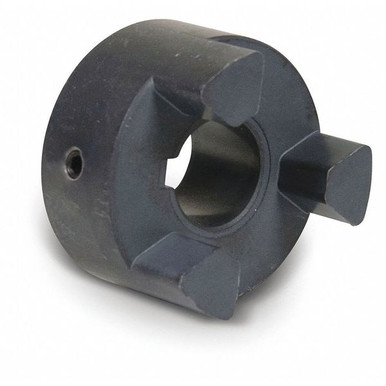

Jaw Coupling Hub,42mm,Sintered Iron

Jaw Coupling Hub,42mm,Sintered Iron

zoom

Brand: TB Woods
PartNumber: L11042MM
Color: Black
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB WOOD'S
Label: TB WOOD'S

Attributes

Key	Value
Assembled Coupling Leng.	107 mm
Bore Dia.	42 mm
Bore Diameter	42 mm
Bore shape	Finish with keyway
Bore size	42MM
Bore tolerance	+.025/.050
Bore tolerance (in)	+0.025MM/. 050MM
Brand	Tb Woods
Center	0.85
Coupling size	L110
Current Stock	8
Dimension (in) (HD)	3.33
Dimension (in) (LTB)	1.69
Dimension (in) (S)	0.75
Dimension (in.) (OD)	3.330
Hub material	Sinter carbon steel
International Shipping	No
Item	Jaw Coupling Hub
Item - Jaw Coupling Hubs	Jaw Coupling Hub
Jaw type	Straight
Keyseat	12MM X 3.3MM
Keyway	12 mm x 3.3 mm
Keyway Size	12MM X 3.3MM
Keyway Size Type	12MM X 3.3MM
Length-through-bore	43
Material	Steel, Sintered Iron
Material - Hubs	Sintered Iron
Material type	Sinter carbon steel
Max compatible bore size	42
Max parallel misalignme.	0
Max RPM	5000
Max speed	5000
Min compatible bore size	16
Mpn	L11042MM
O.D.	85
Outside Dia.	84 mm
Overall length	107
Overall Length	107 mm
Product family	L-jaw hub
Series	Metric Series
Setscrew length	0.625
Setscrew length (in)	5/8
Setscrew size	3/8 16 UNC - 2B
Size	L110
Size - Jaw Couplings	L110
Size code	110
SKU	ZO-G2830694
Special Features	Finished w/ Keyway
SubCategory	Power Transmission
Type	Straight
UPC	698672049887
UPC Code	698672049887
