TB Woods L150N

mpnL150N
brandname: TB Woods
manufacturername: TB Woods

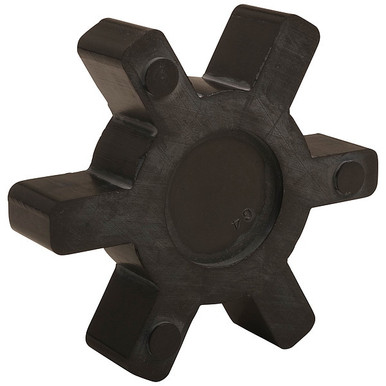

TB WOOD'S L150N L JAW SPIDER, FACTORY NEW!

TB WOOD

zoom

Brand: TB Woods
PartNumber: L150N
Color: Black
PackageQuantity: 1
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Accommodates	1 Degrees Angular and .
Brand	Tb Woods
c	1
Center hole	Solid
Chemical resistance	Poor
Color	Black
Coupling Size	L150
Coupling size	L150
Current Stock	42
Dimension (in.) (OD)	3.725
Element durometer	80A
Element material	Buna-N
Element thickness	1
Element type	Solid Center Spider
Flexibility	Excellent
Height (In.)	0.88 in
Horsepower Rating at 10.	51
HP Rating @ 100 RPM	2.0
HP Rating @ 1200 RPM	24
HP Rating @ 1800 RPM	36
HP Rating @ 300 RPM	6.0
HP Rating @ 3600 RPM	72
International Shipping	No
Item	Buna N Spider Insert
Item - Jaw Coupling Spi.	Jaw Coupling Insert
Jaw type	Straight
Length (In.)	3.72 in
ltb	1.75
Material	Nitrile (Buna-N)
material	Buna-N Spider
Material - Spiders	Buna N
Material type	Buna-N, Black
Max angular misalignment	1?
max bore	1-7/8
Max compatible bore size	1.875
Max parallel misalignme.	0.015
max rpm	5000
Max speed	5000
Max. Bore (In.)	1.875
Max. RPM	5,000 RPM
Max. Torque (In.-Lbs.)	1240
Min compatible bore size	0.625
Mpn	L150N
O.D.	3.73
oal	4.5
od	3.75
Oil resistance	Good
Overall length	4.5
Power rating at 100 RPM	2.0 HP
Product family	L-Jaw Spider
Prop 65	Warning: This product c.
Rated Torque	1,240 in-lb
Serviceable Temp. Range.	-40 to 212
Size	L150
Size - Jaw Couplings	L150
Size code	150
SKU	ZO-G0596802
SubCategory	Power Transmission
Temp. Range	-40 Degrees to 212 Deg.
Temperature rating	-40?F to 212?F
Thickness	0.875
Thickness (in)	0.875
Torque	140 Nm
Torque (In.-Lbs.)	1240
torque in lbs	1240
Torsional stiffness	Soft
Type	Buna N Spider, Spider -.
UPC	698672000093
UPC Code	698672000093
Width (In.)	3.72 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0596802	27.19	1	5000		Tb Woods	0.2	27.19 @ 5000
	AmazonTP	B071L83Z9B	27.82	1	5000	2	TB Woods		27.82 @ 5000
	MRO Supply	337818	29.23	3	5000		TB Woods		29.23 @ 5000
	sustainablesupply.com	C1659933	36.44	1	5000		TB Wood's	0.2	36.44 @ 5000
	us.rs-online.com	71655363	37.3	1	5000		TB Wood's (Altra)		37.3 @ 5000
	simsupply.com	ZO-G0596802	37.39	1	5000		Tb Woods		37.39 @ 5000
	AmazonSC	B071L83Z9B	39.37	1	5000		TB Woods		39.37 @ 5000
	Raptor Supplies	AA8TQY	68.8622805	1	5000		TB WOOD'S		68.8622805 @ 5000
