mpn:
brand:
name: Te-Co
manufacturer:
MPN:
Description:

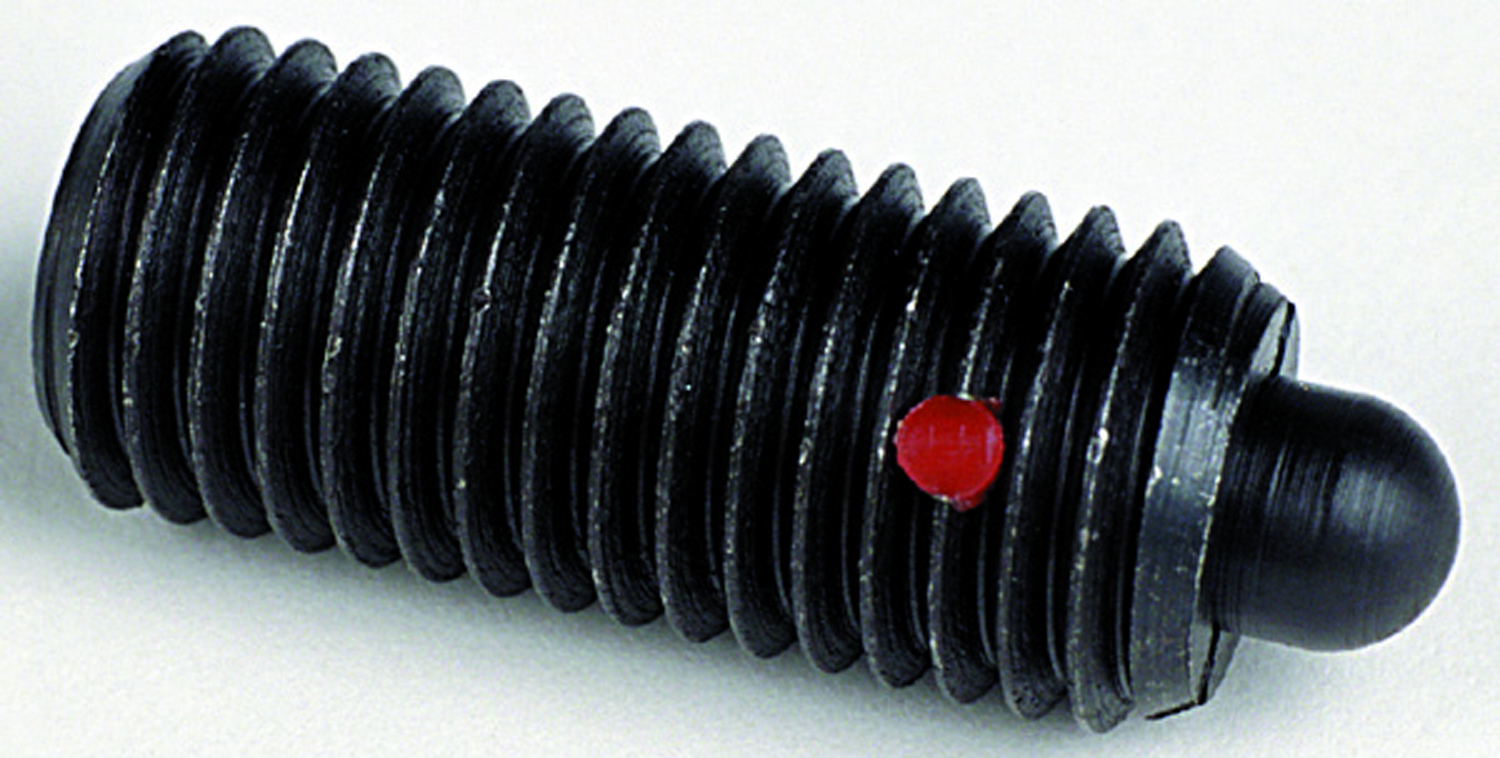

Spring Plunger, Thread Size 3/4 In.-10, Thread Length 1-3/4 in, Plunger Material Steel, Plunger Dia. 0.3740 in, Plunger Projection 0.3120 in, Mounting Type Threaded, Body Length 1-3/4 in, Final Nose Force 16 lb, Initial Nose Force 4 lb, Overall Length 1-3/4 in, Plunger Width 1/4 in, Handle Type Hex Socket Drive, Application Often Used To Raise or Eject Parts, Body Finish Zinc, Body Material Steel, Plunger Finish Zinc, Retractable No, Thread Fully Threaded, Package Quantity 2
Weight:
0.018125
Weight:
0.018125 LB
Preferred Price:
41.02
Price:
41.02
Min Simple Price:
22.42
Absolute Min Price:
31.83
Min Price:
31.83
Dimensions:
[7.0, 5.0, 1.0]
qty:
21
simpleSku:
MDc3MQ:::52210
sku:
MDc3MQ::KC:52210@y0
condition:
11
seller:
freertool.com
amzMan:
te-co
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Body | Zinc Plated Clear Chromate |
| Body Dia. | 3/4 in |
| Body Length (B) | 1.750 in |
| Body Length (In.) | 1-3/4 |
| Body Length, Overall Length, Thread Length | 1-3/4 in |
| Body Material | 12L14 Steel |
| Body Width (In.) | 0.750 |
| End Force | Light |
| End Force Final (Lb.) | 16.00 |
| End Force Initial (Lb.) | 4.00 |
| Final End Force | 16 lb |
| Finish | Zinc Plated |
| Finish, Plunger Finish | zinc |
| Force | 4.00 lb. Initial, 16.00 lb. Final |
| Function | Used In Applications When Higher End Forces Are Needed, Often Used To Raise or Eject Parts |
| Initial End Force | 4.0 lb |
| Item | Spring Plunger |
| Locking Element, Locking Element Present, Thread-Locking Element Included | Yes |
| Material, Plunger Material | Steel |
| Nose Diameter (D) +0.000/-0.001 | 0.374 in |
| Nose Material | Case Hardened 12L14 Steel |
| Plunger | Case Hardened Steel, Zinc Plate |
| Plunger Dia. | 0.3740 in |
| Plunger Dia. (In.) | 0.374 |
| Plunger Travel (In.) | 0.312 |
| Plunger Width | 1/4 in |
| Projection Size (C) | 0.312 in |
| Spring | 302/304 Stainless |
| Thread Lock Element | 1 |
| Thread Size | 3/4"-10 |
| Thread Size (A) | 3/4-10 |
| Thread Type | UNC |
| Type | With Locking Element |
| Weight per 100pcs | 0.14 lb |
| Width Across Flats (E) | 0.250 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | freertool.com | TC-52210 | 11.21 | 17.936 | 1 | 2 | Te-Co | 11.21 @ Qty: 2+ | ||
 | Suncoast Tools | 52210 | 12.15 | 48.6 | 7 | 2 | TE-CO | 0.14 | 12.15 @ Qty: 7+ | |
 | Zoro | G2805783 | 13.69 | 21.904 | 1 | 2 | Te-Co | 0.29 | 13.69 @ Qty: 2+ | |
 | MRO Supply | 6297094 | 15.36 | 55.296 | 6 | 2 | Te-Co | 0.14 | 15.36 @ Qty: 6+ | |
| Grainger | 2YKW3 | 31.05 | 49.68 | 1 | 2 | 15 | TE-CO | 31.05 @ Qty: 2+ | ||
 | Raptor Supplies | AC4CHH | 40.5039375 | 64.8063 | 1 | 2 | TE-CO | 40.5039375 @ Qty: 2+ |
