TE Connectivity / AMP 2031-5002-00

B083JNL3VH

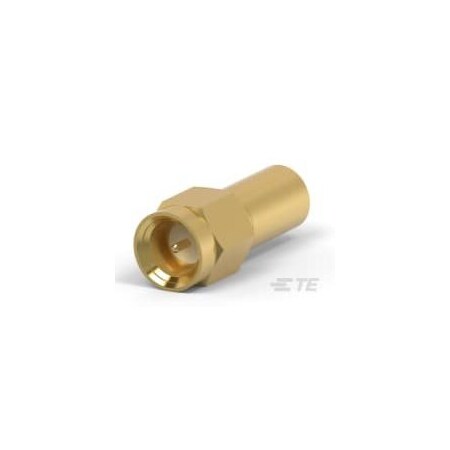

2031-5002-00, Conn SMA PL 12.4GHz 50Ohm Solder ST Cable Mount Gold Over Copper (10 Items)

2031-5002-00, Conn SMA PL 12.4GHz 50Ohm Solder ST Cable Mount Gold Over Copper (10 Items)zoom

Attributes

Key Value
Alternate Part No.571-2031-5002-00
AngleStraight
Body FinishGold
Body MaterialStainless Steel
Body Plating MaterialGold
BrandTE Connectivity / AMP
Cable Connector Orienta.Straight
Cable TypeRG-/U 141 ; RG-/U 142 ;.
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector Seal TypeGasket
Connector SystemCable-to-Cable
Contact MaterialBeryllium Copper
Contact PlatingGold, Gold over Copper
Country of Origin (subj.Mexico
DetentWithout
Dielectric MaterialTetrafluoroethylene, TF.
Frequency12.4GHz
GenderPlug
Housing ColorGold
Housing FinishGold
Impedance50 Ohms, 50
Insulation Resistance10000 MOhms
ManufacturerTE Connectivity
Manufacturer Part No.2031-5002-00
Maximum Frequency12.4 GHz
Mounting TypeCable Mount
Number of Coaxial Conta.1
Number of Positions1
Operating Frequency12.4
Operating Temperature R.- 62 C to + 165 C, -65 .
OrientationStraight
PackagingBulk
Packaging MethodCarton
Part # Aliases1051638-1
PolarityNormal, Standard
Port ConfigurationSingle Port
Primary TypeSMA
ProductConnectors
Product CategoryRF Connectors / Coaxial.
Product Length30.15?mm?[?1.187?in?]
RF Connector Center Con.Beryllium Copper
RF Connector Center Con.Gold over Copper
RF Connector Coupling M.Threaded
RF Connector Mated Oute.6.35?mm?[?.25?in?]
RF Connector StylePlug
RF Contact Captivation .Mechanical
RF InterfaceSMA
RF SeriesSMA
SealableYes
SeriesSMA Series
SizeStandard
Special FeaturesHeat Shrink Tubing
TerminationSolder
Termination Method to W.Solder
TypeCable Plug
Voltage Rating335 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com2031-5002-008.281224TE Connectivity / AMP Brand8.28 @ 10
TE Connectivity1051638-19.9291255TE Connectivity (TE)9.929 @ 10
HotendaH83618810.1110TE Connectivity AMP Connectors10.1 @ 10
thumbzoomDigi-Key1051638-1-ND10.342110TE Connectivity AMP Connectors10.342 @ 10
us.rs-online.com7008586710.65100010TE Connectivity10.65 @ 1000
thumbzoomZoroG20098328510.91100010105Te Connectivity10.91 @ 1000
Freelance Electronics1051638-111.0506163Tyco Electronics11.0506 @ 10
thumbzoomswatee.com2031-5002-0014.04110TE Connectivity14.04 @ 10
RS Delivers821-887724.948110TE Connectivity24.948 @ 10
AmazonTPB083JN3SLQ152.861101TE Connectivity / AMP152.86 @ 10
