TE Connectivity 1056456-1

B00KSNFQV2

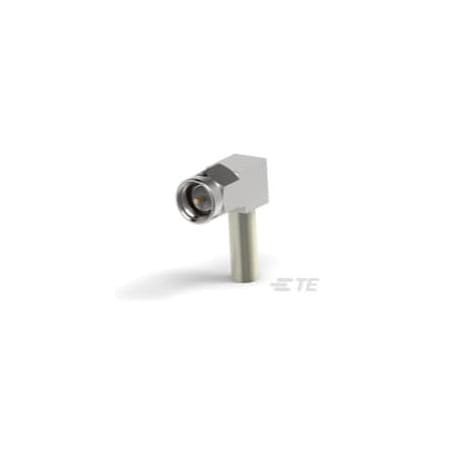

TE Connectivity Part Number 1056456-1

TE Connectivity Part Number 1056456-1zoom

Attributes

Key Value
AngleRight Angle
ApplicationCommercial
Base Product Number1056
Body FinishPassivated, -
Body MaterialStainless Steel
Cable Connector Orienta.Right Angle
Cable GroupRG-316
Cable TypeRD 316/U Double Braid, .
Center Contact MaterialBrass
Center Contact PlatingGold
ConnectorWire & Cable
Connector Seal TypeGasket
Connector StyleSMA
Connector SystemCable-to-Cable
Connector TypePlug, Male Pin
Contact PlatingGold over Nickel
Contact TerminationSolder
Country of Origin (subj.Mexico
Crimp TypeHex
DetentWithout
Dielectric MaterialTetrafluoroethylene, Po.
Fastening TypeThreaded
Features-
Frequency12.4GHz
Frequency - Max12.4 GHz
Housing ColorSilver
Housing FinishPassivated
Impedance50Ohm, 50 Ohms, 50
Includes3 pcs - 1 Connector, 1 .
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrTE Connectivity AMP Con.
Mounting Feature-
Mounting TypeFree Hanging (In-Line),.
Number of Coaxial Conta.1
Number of Ports1
Number of Positions1
Operating Frequency12.4
Operating Temperature-65?C ~ 165?C
Operating Temperature R.-65 ? 165??C?[?-85 ? 32.
PackageBulk
PackagingBulk
Packaging MethodCarton
PolarityNormal
Port ConfigurationSingle Port
Primary TypeSMA
Product Length16.9?mm?[?.665?in?]
Product StatusObsolete
RF Connector Center Con.Beryllium Copper
RF Connector Center Con.Gold over Nickel
RF Connector Coupling M.Threaded
RF Connector Mated Oute.6.35?mm?[?.25?in?]
RF Connector StylePlug
RF Contact Captivation .Mechanical
RF InterfaceSMA
SealableYes
SeriesSMA Series, -
Shield TerminationCrimp
SizeStandard
TerminationCrimp
Termination Method to W.Crimp
TypeCable Plug
Voltage Rating250 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical1056456-16.68517TE Connectivity6.68 @ 5
Onlinecomponents.com1056456-18.46111TE Connectivity / AMP Brand8.46 @ 1
us.rs-online.com700845289.221000In StockTE Connectivity9.22 @ 1000
Freelance Electronics1056456-19.5360116Tyco Electronics9.53601 @ 1
TE Connectivity1056456-19.6851828TE Connectivity (TE)9.685 @ 1
HotendaH83701210.671In StockTE Connectivity AMP Connectors10.67 @ 1
Mouser571-1056456-111.04135TE Connectivity11.04 @ 1
Digi-Key195781211.98500633TE Connectivity AMP Connectors11.98 @ 1
WaldomTE CONNECTIVITY AMP BRAND 1056456-117.8131647TE CONNECTIVITY/AMP BRAND17.81 @ 3
thumbzoomNewark07H824921.161000In StockAMP - TE CONNECTIVITY21.16 @ 1000
thumbzoomZoroG30100897929.251000In StockTe Connectivity29.25 @ 1000
