TE Connectivity 1546306-5

B083L6Q63Y

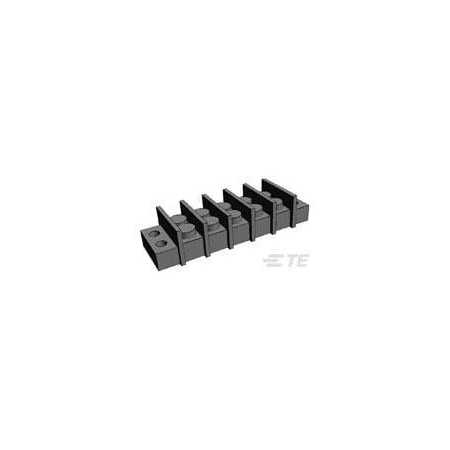

1546306-5, 9.50MM (.374) DBL Row Barrier Strip W/O Washer (25 Items)

1546306-5, 9.50MM (.374) DBL Row Barrier Strip W/O Washer (25 Items)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized
Alternate Part No.571-15463065
Barrier Strip StyleDual Barrier
Block MaterialThermoplastic
Bottom Termination StyleQuick Connects
BrandTE Connectivity / AMP
Centerline (Pitch)9.53?mm?[?.375?in?]
ColorBlack
ConnectorPrinted Circuit Board
Country of Origin (subj.Taiwan, Province of Chi.
Current Rating20 A, 20
Current Rating (Max)20
Housing MaterialThermoplastic
Length2.55 in, 64.7 mm
ManufacturerTE Connectivity
Manufacturer Part No.1546306-5
Mounting AngleVertical
Mounting StyleOpen End Position
Number of Poles5
Number of Positions5
Number of Rows2, Double Row
Operating Temperature R.-40 ? 120??C?[?-40 ? 24.
Pin Spacing0.375 in. (9.53mm)
Pitch9.53 mm
ProductBarrier Terminal Blocks
Product CategoryBarrier Terminal Blocks
Screw MaterialSteel
Screw PlatingNickel
Screw Size#6-32
Series1546306 Series
Special FeaturesHigh Voltage
Temperature Range-40 to 105 C
Termination StyleScrew
Thread Size6-32 x 1/4
TypeDual Barrier, Flat Bloc.
Voltage300
Voltage Rating300 V
Wire Gauge Max12
Wire Gauge Min22
Wire Gauge Range22-12
Wire Size.3 ? 3, 22 ? 12, 12-22 .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1546306-51.581897TE Connectivity / AMP Brand1.58 @ 1
thumbzoomZoroG9009737771.9500052Te Connectivity1.9 @ 5000
Digi-Key12779442.21145te-connectivity-amp-connectors2.21 @ 1
RS Delivers782-19992.2368153TE Connectivity2.2368 @ 1
Future Electronics21308052.3521300TE Connectivity2.352 @ 1
us.rs-online.com700886182.5711065TE Connectivity2.57 @ 1
thumbzoomswatee.com1546306-52.871278TE Connectivity2.87 @ 1
Newark76AC18333.01133AMP - TE CONNECTIVITY3.01 @ 1
TE Connectivity1546306-53.031811463TE Connectivity (TE)3.03181 @ 1
HotendaH14989543.09153TE Connectivity AMP Connectors3.09 @ 1
AmazonTPB00HPLHNDO5.991532TE Connectivity5.99 @ 1
AmazonSCB00DWIH7PS15.17153TE Connectivity15.17 @ 1
