TE Connectivity 1546310-8

mpn1546310-8
brandname: TE Connectivity
manufacturername: TE Connectivity

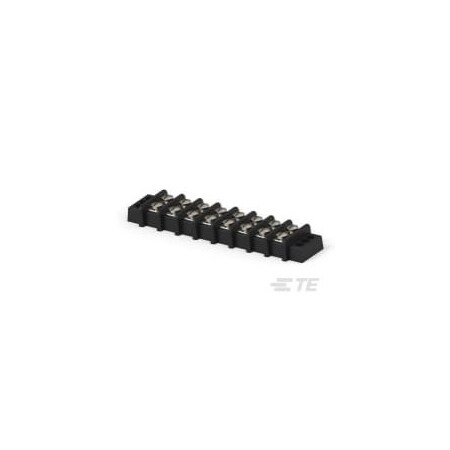

T-E Connectivity 1546310-8 (1 pc) 8P .563 DR BARRIER STRIP

Brand: TE Connectivity
PartNumber: 1546310-8
Model: 1546310-8
PackageQuantity: 1
Manufacturer: T-E Connectivity
Label: T-E Connectivity

Attributes

Key	Value
Agency Approvals	UL Recognized
Alternate Part No.	571-15463108
Barrier Type	2 Wall (Dual)
Base Product Number	1546310
Base Style	Flat with End Mounting .
Block Material	Thermoplastic
Block Style	Flat
Bottom Termination	Closed
Brand	TE Connectivity / AMP
Category	Connectors, Interconnec.
Centerline (Pitch)	.563 in
Color	Black
Connector & Contact Ter.	Printed Circuit Board
Current Rating	30 A
Current Rating (Amps)	30A
Current Rating (Max)	30 A
Description	CONN BARRIER STRIP 8CIR.
Detailed Description	8 Circuit 0.563" (14.30.
Digi-Key Part Number	1546310-8-ND
Features	Flange
Housing Material	PBT, Thermoplastic
Length	140 mm, 5.5 in
Manufacturer	TE Connectivity AMP Con.
Manufacturer Part No.	1546310-8
Manufacturer Product Nu.	1546310-8
Manufacturer Standard L.	24 Weeks
Material - Insulation	Polybutylene Terephthal.
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Angle	Vertical
Mounting Ears	With
Mounting Insert	Without
Mounting Style	Open End Position
Mounting Type	Chassis, Panel
Number of Circuits	8
Number of Poles	8
Number of Positions	8
Number of Rows	Single Row, 2
Number of Wire Entries	16
Operating Temperature	-40?C ~ 120?C
Operating Temperature R.	-40 to 120?C
Package	Bulk
Pin Spacing	0.562 in. (14.27mm)
Pitch	14.27 mm, 0.563" (14.30.
Product	Barrier Terminal Blocks
Product Category	Barrier Terminal Blocks
Product Status	Active
Product Type	Barrier Strip
Screw Head Type	Combo Phil-Slot
Screw Material	Steel
Screw Plating	Nickel
Screw Plating Material	Nickel
Screw Size	6-32 x 1/4, 8-32
Series	Buchanan, 1546310 Series
Special Features	High Voltage
Terminal Block Type	Barrier Block
Terminal Material	Brass
Terminal Plating Materi.	Tin
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Thread Size	6-32 x 1/4
Top Hardware	Binding Combo Head
Top Termination	Screws
Type	Dual Barrier, Flat Bloc.
UL Flammability Rating	UL 94V-0
Voltage	300 V
Voltage Rating	300 V, 300V
Wire Gauge	10-22 AWG
Wire Gauge Max	10
Wire Gauge Min	22
Wire Gauge Range	22-10
Wire Range	22 to 10 AWG
Wire Size	10-22 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
us.rs-online.com	70088638	5.67	300	10		TE Connectivity	5.67 @ 300
Newark	76AC1842	6.48	16	10		AMP - TE CONNECTIVITY	6.48 @ 10
Digi-Key	2259249	6.533	1	7426		TE Connectivity AMP Connectors	6.533 @ 10
Onlinecomponents.com	1546310-8	7.09	1	1028		TE Connectivity / AMP Brand	7.09 @ 10
Hotenda	H1498541	8.51	1	10		TE Connectivity AMP Connectors	8.51 @ 10
AmazonTP	B00HPLYXU0	10.97	1	10	5	TE CONNECTIVITY / BUCHANAN	10.97 @ 10
swatee.com	1546310-8	13.23	1	124		TE Connectivity	13.23 @ 10
Zoro	G600973992	27450.0	1	10		Te Connectivity	27450.0 @ 10
