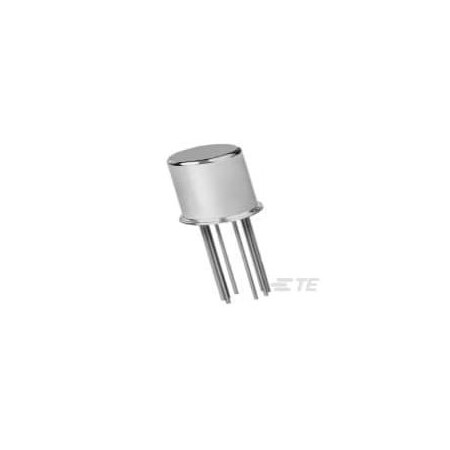

TE Connectivity M39016/9-022L

B083G9323S

M39016/9-022L, JMAP-5XL = M39016/9-019L

M39016/9-022L, JMAP-5XL = M39016/9-019Lzoom

Attributes

Key Value
CategoryRelays
Coil Current30.8 mA
Coil Insulation-
Coil Resistance390 Ohms
Coil TypeNon Latching
Coil Voltage12VDC
Contact FormDPDT (2 Form C)
Contact MaterialSilver Palladium (AgPd).
Contact Rating (Current)1 A
Country of Origin (subj.India
DescriptionJMAP-12XL = M39016/9-02.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number2266-1617123-1-ND
Features-
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.1617123-1
MfrTE Connectivity Aerospa.
Mounting TypeThrough Hole
Must Operate Voltage7 VDC
Must Release Voltage0.63 VDC
Operate Time2 ms
Operating Temperature-65?C ~ 125?C
PackageBulk
Product StatusActive
Relay TypeGeneral Purpose
Release Time1.5 ms
Seal RatingSealed - Hermetically
SeriesMAP
Switching Voltage28VDC - Nom
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1617123-184.3216TE CONNECTIVITY/AMP BRAND84.32 @ 1
Onlinecomponents.comM39016/9-022L92.723In StockTE Connectivity / CII Brand92.72 @ 3
Newark35AC8910106.9216AMP - TE CONNECTIVITY106.92 @ 1
thumbzoomDigi-Key14708303124.416TE Connectivity Aerospace, Defense and Marine124.4 @ 1
AmazonTPB00JJ61CF8124.891In Stock1TE Connectivity124.89 @ 1
thumbzoomZoroG7009752301384.3515In StockTe Connectivity1384.35 @ 15
