TE Connectivity 1658608-1

B00KSNOM1W

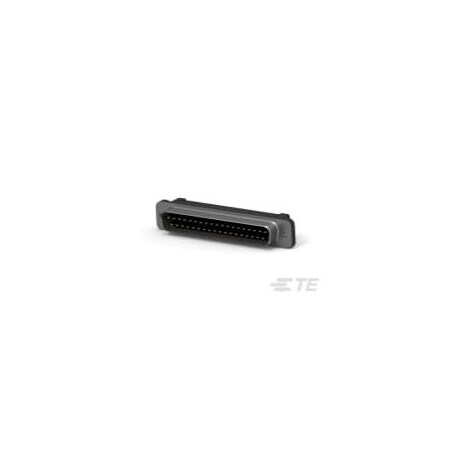

TE Connectivity Part Number 1658608-1

TE Connectivity Part Number 1658608-1zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Part No.571-1658608-1
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number1658608
BrandTE Connectivity / AMP
Cable Clamping MethodInsulation Displacement.
Cable Insulation Diamet..81 ? .97?mm?[?.032 ? ..
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.109?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector StylePlug, D-Sub
Connector SystemCable-to-Cable
Connector TypePlug, Male Pins
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1.25
Contact FinishGold
Contact Finish Thickness-
Contact Form-
Contact MaterialPhosphor Bronze
Contact PlatingGold Over Nickel, Gold
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Current Rating1.25 A
Current Rating (Amps)1.25A
DescriptionCONN D-SUB PLUG 37POS I.
Detailed Description37 Position D-Sub Plug,.
Dielectric MaterialThermoplastic
Digi-Key Part NumberAML37B-ND
EnclosureWithout
FeaturesFeed Through, Grounding.
Flange FeatureHousing/Shell (4-40)
GenderMale
Housing MaterialThermoplastic
Ingress Protection-
Insert MaterialBrass
Insulation Diameter0.032-0.038 "
ItemConnector
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1658608-1
Manufacturer Product Nu.1658608-1
Manufacturer Standard L.13 Weeks
MaterialThermoplastic; Steel
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Threaded Insert, 4-40 U.
Mating HardwareThreaded Inserts
MfrTE Connectivity AMP Con.
Mounting StyleWire
Mounting TypeFree Hanging (In-Line)
Number of Contacts37
Number of Positions37
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageBulk
Package Quantity1
PCB Contact Termination.Tin
PCB Mount Retention TypeNone
PreloadedYes
Primary TypeD-Ribbon
Product CategoryD-Sub Standard Connecto.
Product StatusActive
SealableNo
SeriesHDF-20 Series, AMPLIMIT.
Shell MaterialSteel, Front Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell PlatingBright Tin
Shell Size4
Shell Size, Connector L.4 (DC, C)
Shell TypeFront Metal Shell
ShieldedYes
Solid Wire Size28 ? 26, .1 ? .13
Special FeaturesStrain Relief
StandardsUL94 V-0
Style - ConnectorLow Profile 90 Degrees
TerminationIDC, Ribbon Cable, IDC/.
Termination Method to W.Insulation Displacement.
Termination StyleCrimp
TypeCable Plug, Plug, Pin
Use With - Nonmetallic .Ribbon Cable
Voltage Rating250 V, -
Wire Gauge26-28 AWG, Stranded or .
Wire Size28 ? 26, .08 ? .15, 26-.
Wire/Cable TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1658608-18.03401723TE CONNECTIVITY/AMP BRAND8.03 @ 40
TE Connectivity1658608-110.756711493TE Connectivity (TE)10.75671 @ 1
thumbzoomNewark42K664111.921308AMP - TE CONNECTIVITY11.92 @ 1
Avnet42K664112.811764TE Connectivity12.81 @ 1
thumbzoomswatee.com1658608-114.311134TE Connectivity14.31 @ 1
Onlinecomponents.com1658608-114.71631152TE Connectivity14.716 @ 3
RS Delivers756-1004P16.5241142TE Connectivity16.524 @ 1
thumbzoomDigi-Key82538716.63211096TE Connectivity AMP Connectors16.632 @ 1
Future Electronics329724917.23476200In StockTE Connectivity17.23476 @ 200
AmazonTPB00JJ5MB0O17.51In Stock3TE Connectivity17.5 @ 1
TME1658608-128.451In StockTE Connectivity28.45 @ 1
us.rs-online.com7008560033.281In StockTE Connectivity33.28 @ 1
thumbzoomZoroG501037403403.61In StockTe Connectivity403.6 @ 1
