mpn:
brand:
manufacturer:
MPN:
Description:

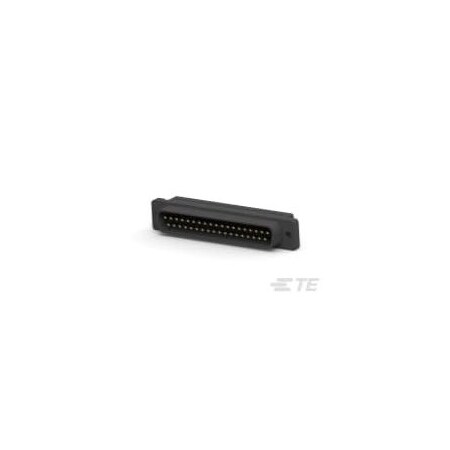

Conn D-Ribbon Cable Plug 37Pos STR HDF-20Series IDC 28-26AWG PlasticShell
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
18.97
Price:
18.97
Min Simple Price:
9.54
Absolute Min Price:
14.1
Min Price:
14.1
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NjI5OA:::1658615-1
sku:
NjI5OA::EI:1658615-1@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Agency Approvals | UL Recognized ; UL Listed and CSA Certified |
| Alternate Part No. | 571-1658615-1 |
| Angle | Straight |
| Application | Commercial |
| Backset Spacing, Contact Finish Thickness, Contact Form, Ingress Protection, Shell Material, Finish, Voltage Rating | - |
| Base Product Number | 1658615 |
| Brand | TE Connectivity / AMP |
| Cable Clamping Method | Insulation Displacement Crimp (IDC) |
| Category | Connectors, Interconnects |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish, Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Over Nickel |
| Contact Type | Signal |
| Current Rating | 1.25 A |
| Current Rating (Amps) | 1.25A |
| Dielectric Material, Housing Material, Material, Shell Plating | Thermoplastic |
| Features | Feed Through |
| Flange Feature | Housing/Shell (Unthreaded) |
| Gender | Male |
| Insulation Diameter | 0.032-0.038 " |
| Item | Connector |
| Manufacturer | TE Connectivity |
| Manufacturer Part No. | 1658615-1 |
| Material Flammability Rating, Standards | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Style | Wire |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts, Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 105?C |
| Package | Bulk |
| Package Quantity | 1 |
| Part Status | Active |
| Primary Type | D-Ribbon |
| Product Category | D-Sub Standard Connectors |
| Series | HDF-20 Series, HDF-20, AMPLIMITE HDF-20 |
| Shell Material | All Plastic Shell, Plastic |
| Shell Size | 4 |
| Shell Size, Connector Layout | 4 (DC, C) |
| Special Features | Strain Relief |
| Style - Connector | Low Profile |
| Termination | IDC, Ribbon Cable, IDC/Ribbon Cable |
| Termination Style | IDC |
| Type | Cable Plug, Plug, Pin |
| Use With - Nonmetallic Building Cable | Ribbon Cable |
| Voltage Rating | 250 V |
| Wire Gauge | 26-28 AWG, Stranded or Solid |
| Wire Size | 26-28 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 1658615-1 | 9.54 | 9.54 | 1 | 1052 | TE Connectivity / AMP Brand | 9.54 @ Qty: 1+ | |||
 | Carlton Bates Company | 74114920430 | 11.72 | 11.72 | 1 | In Stock | TE CONNECTIVITY | 11.72 @ Qty: 1+ | ||
 | Newark | 93K2486 | 12.03 | 12.03 | 1 | 1 | AMP - TE CONNECTIVITY | 12.03 @ Qty: 1+ | ||
| Hotenda | H808719 | 12.3 | 12.3 | 1 | In Stock | TE Connectivity AMP Connectors | 12.3 @ Qty: 1+ | |||
| us.rs-online.com | 70041287 | 12.99 | 12.99 | 1 | 838 | TE Connectivity | 12.99 @ Qty: 1+ | |||
| RS Delivers | 409-3236 | 13.38 | 13.38 | 1 | In Stock | TE Connectivity | 13.38 @ Qty: 1+ | |||
 | NEP Electronics | 1658615-1 | 13.6849 | 227.16934 | 40 | In Stock | TE Connectivity | 13.6849 @ Qty: 40+ | ||
| Digi-Key | 14771685 | 15.295 | 15.295 | 1 | 367 | TE Connectivity AMP Connectors | 15.295 @ Qty: 1+ | |||
| AmazonTP | B00KSO1UEI | 16.4 | 16.4 | 1 | In Stock | 2 | TE Connectivity | 16.4 @ Qty: 1+ | ||
 | swatee.com | 1658615-1 | 18.29 | 18.29 | 1 | 70 | TE Connectivity | 18.29 @ Qty: 1+ | ||
| AmazonSC | B07696D7J2 | 28.97 | 28.97 | 1 | In Stock | AMP - TE CONNECTIVITY | 28.97 @ Qty: 1+ | |||
 | Zoro | G601037082 | 502.0 | 502.0 | 1 | In Stock | Te Connectivity | 502.0 @ Qty: 1+ |
