TE Connectivity 1658621-4

B06X9KM7VW

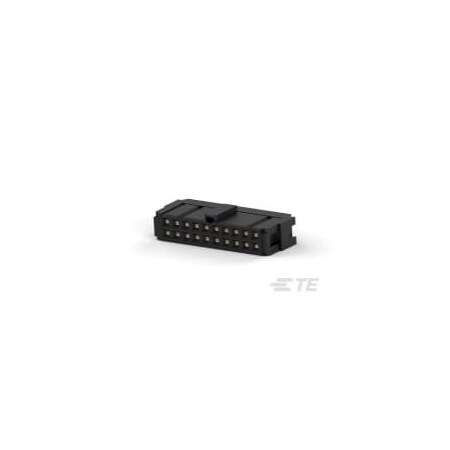

TE CONNECTIVITY 1658621-4 AMP LATCH 20 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 10 item(s)

TE CONNECTIVITY 1658621-4 AMP LATCH 20 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 10 item(s)zoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
Alternate Part No.571-1658621-4
AngleStraight
ApplicationWire-to-Board, Signal
Base Product Number1658621
BrandTE Connectivity / AMP
Cable TerminationIDC
CategoryConnectors, Interconnec.
ColorBlack
ColourBlack
Connection MaterialPhosphor Bronze
Connectorplug
Connector pinout layout2x10
Connector Terminates ToWire & Cable
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness15.0?in (0.38?m)
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact PlatingGold Over Nickel, Gold
Contact platinggold-plated
Contact Plating Thickne.0.38 ?m
Contact TypeForked
Contacts pitch2.54mm
Current Rating1 A
DescriptionCONN RCPT 20P IDC 26-28.
Detailed Description20 Position Rectangular.
Digi-Key Part NumberAKC20H-ND
Electrical mountingIDC
Fastening Type-
FeaturesFeed Through, Polarizin.
Flammability RatingUL 94 V-0
Height15.16 mm
Hole Center to Center2.54 mm
Housing MaterialThermoplastic
ItemConnector
Kind of connectorfemale
Length29.97 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1658621-4
Manufacturer Product Nu.1658621-4
Manufacturer Standard L.16 Weeks
MaterialThermoplastic
Max. Insulation Dia.0.037 in
Max. Single Wire Size26 AWG
Max. Temp.105?C
Max. Voltage250V AC
Mechanical mountingfor ribbon cable
MfrTE Connectivity AMP Con.
Min. Single Wire Size28 AWG
Mounting StyleCable
Mounting TypeFree Hanging (In-Line)
Number of Contacts20
Number of pins20
Number of Positions20
Number of Rows2
Operating Temperature-55 to +105 ?C
Overall Length1.18 "
PackageTube
Pin Spacing0.1 in
Pitch2.54 mm, 0.100" (2.54mm.
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Product TypeWire Housings
Ribbon cable pitch1.27mm
Row Spacing0.100" (2.54mm)
SeriesAMP-Latch, AMP-LATCH NO.
StandardsCSA Certified; UL E2847.
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder; .
TerminationIDC
Termination StyleIDC
TradenameAMP-Latch
TypeReceptacle Housing, Rec.
Type of connectorIDC
Width0.2949 in
Wire Gauge26-28 AWG
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet1658621-41.05211821TE Connectivity1.052 @ 25
Onlinecomponents.com1658621-41.1619642TE Connectivity / AMP Brand1.16 @ 25
Future Electronics86977241.1881441TE Connectivity1.188 @ 25
WaldomTE CONNECTIVITY AMP BRAND 1658621-41.19501300TE CONNECTIVITY/AMP BRAND1.19 @ 50
thumbzoomNewark88K15311.2115797AMP - TE CONNECTIVITY1.21 @ 25
thumbzoomCarlton Bates Company741149192291.4125TE CONNECTIVITY1.4 @ 25
thumbzoomNEP Electronics1658621-41.6301502895TE Connectivity1.6301 @ 50
us.rs-online.com700430602.28111700TE Connectivity2.28 @ 25
RS Delivers454-2479P2.30413225TE Connectivity2.304 @ 25
thumbzoomDigi-Key8254022.3544125TE Connectivity AMP Connectors2.3544 @ 25
thumbzoomTME1658621-42.43125TE Connectivity2.43 @ 25
thumbzoomswatee.com1658621-42.6116088TE Connectivity2.61 @ 25
AmazonTPB00KSNN9RU10.011252TE Connectivity10.01 @ 25
thumbzoomZoroG90104095999.5125Te Connectivity99.5 @ 25
