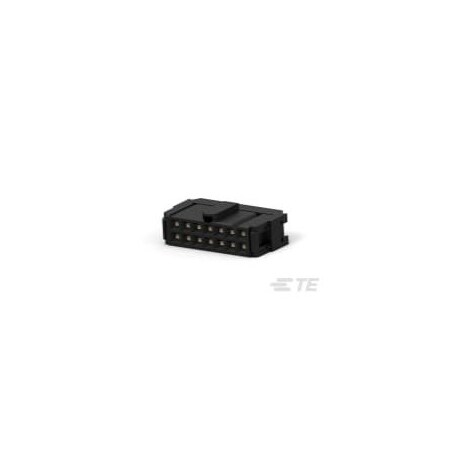

TE Connectivity 1658622-2

B00KSO2M4K

TE Connectivity Part Number 1658622-2

TE Connectivity Part Number 1658622-2zoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Base Product Number1658622
Body OrientationStraight
BrandTE Connectivity
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeReceptacle
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0?in (0.76?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact PlatingGold over Palladium Nic.
Contact TypeForked, Socket
Country of Origin (subj.Taiwan, Province of Chi.
Current Rating1A
DescriptionCONN RCPT 14POS IDC 26-.
Detailed Description14 Position Rectangular.
Digi-Key Part NumberAKC14B-ND
Fastening Type-
FeaturesFeed Through, Polarizin.
GenderFemale
Header TypePin Header
Housing ColorBlack
Housing MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1658622-2
Manufacturer Standard L.17 Weeks
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Maximum Operating Tempe.+105?C
MfrTE Connectivity AMP Con.
Minimum Operating Tempe.-65?C
Mounting TypeFree Hanging (In-Line),.
Number Of Contacts14
Number of Contacts14
Number of Positions14
Number Of Rows2
Number of Rows2
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
PackageBulk
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product StatusActive
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH No.
StockStock
TerminationIDC
Termination MethodIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Voltage Rating250 V ac
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics91086820.96888900025TE Connectivity0.96888 @ 9000
Onlinecomponents.com1658622-21.214505TE Connectivity / AMP Brand1.2 @ 25
thumbzoomNewark73K62201.37110586AMP - TE CONNECTIVITY1.37 @ 25
WaldomTE CONNECTIVITY AMP BRAND 1658622-21.39501000TE CONNECTIVITY/AMP BRAND1.39 @ 50
thumbzoomCarlton Bates Company741149192301.53125TE CONNECTIVITY1.53 @ 25
TE Connectivity1658622-21.5557414669TE Connectivity (TE)1.55574 @ 25
thumbzoomDigi-Key8254122.3395214080TE Connectivity AMP Connectors2.33952 @ 25
us.rs-online.com700427762.391463TE Connectivity2.39 @ 25
thumbzoomRS Delivers782-99302.436125TE Connectivity2.436 @ 25
thumbzoomZoroG6010411572.695025Te Connectivity2.69 @ 50
AmazonTPB07KWK4PCB56.521251TE Connectivity / AMP Brand56.52 @ 25
AmazonB07KWK4PCB56.52125TE Connectivity / AMP56.52 @ 25
