TE Connectivity / AMP 1658622-9

B00FRBYDAK

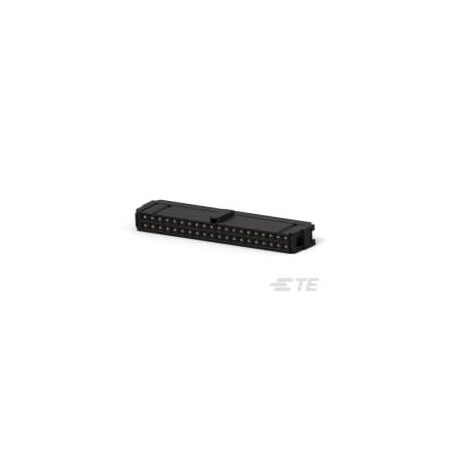

TE Connectivity / AMP Brand 1658622-9 Connector Headers and PCB Receptacles

TE Connectivity / AMP Brand 1658622-9 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Agency ApprovalsCSA ; UL
AngleStraight
ApplicationSignal
Base Product Number1658622
Cable TerminationIDC
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ColorBlack
Connection MaterialPhosphor Bronze
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector Terminates ToWire & Cable
Connector TypeReceptacle
Connector Width7.49?mm?[?.2949?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0, 30.0?in (0.76?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact PlatingGold Over Nickel
Contact Plating Thickne.0.76 ?m
Contact TypeForked, Socket
Current Rating1 A
DescriptionCONN RCPT 40POS IDC 26-.
Detailed Description40 Position Rectangular.
Digi-Key Part NumberAKC40B-ND
Fastening Type-
FeaturesFeed Through, Polarizin.
Flammability RatingUL 94 V-0
Header TypePin Header
Height15.16 mm
Hole Center to Center2.54 mm
Housing ColorBlack
Housing MaterialThermoplastic
ItemConnector
Lead Free Status / RoHS.RoHS Compliant
Length55.37 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Part Number1658622-9
Manufacturer Product Nu.1658622-9
Manufacturer Standard L.17 Weeks, 4 Weeks
MaterialThermoplastic
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Max. Insulation Dia.0.037 in
Max. Single Wire Size26 AWG
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Min. Single Wire Size28 AWG
Mounting TypeFree Hanging (In-Line)
Number of Contacts40
Number of Positions40
Number of Rows2
Operating Temperature-55 to +105 ?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Length2.18 "
PackageTube
PackagingBulk Pack
Packaging MethodBox & Tube, Tube
Packaging Quantity50
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pin Spacing0.1 in
Pitch0.100" (2.54mm), 2.54 m.
Primary TypeCable Connector
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Row Spacing0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
Standard Package50
StandardsCSA Certified; UL E2847.
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder; .
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
TypeReceptacle
UL Flammability RatingUL 94V-0
Width0.2949 in
Wire Gauge26-28 AWG
Wire Size.08 ? .15, 28 ? 26, 158.
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1658622-92.0114935TE Connectivity / AMP Brand2.01 @ 100
Future Electronics22092452.3450100TE Connectivity2.34 @ 100
TE Connectivity1658622-92.483413589TE Connectivity (TE)2.4834 @ 100
iodParts1658622-92.721001050TE Connectivity2.72 @ 100
thumbzoomCarlton Bates Company741149192322.81100TE CONNECTIVITY2.8 @ 100
us.rs-online.com700427813.011555TE Connectivity3.01 @ 100
thumbzoomNewark73K62263.51363AMP - TE CONNECTIVITY3.5 @ 100
thumbzoomDigi-Key8254193.8571616561TE Connectivity AMP Connectors3.85716 @ 100
RS Delivers782-99434.3321967TE Connectivity4.332 @ 100
AmazonTPB083ZKRL8K72.811001TE Connectivity / AMP72.8 @ 100
thumbzoomZoroG301041204192.51100Te Connectivity192.5 @ 100
