Amp - Te Connectivity 1658623-2

B00DK06NIK

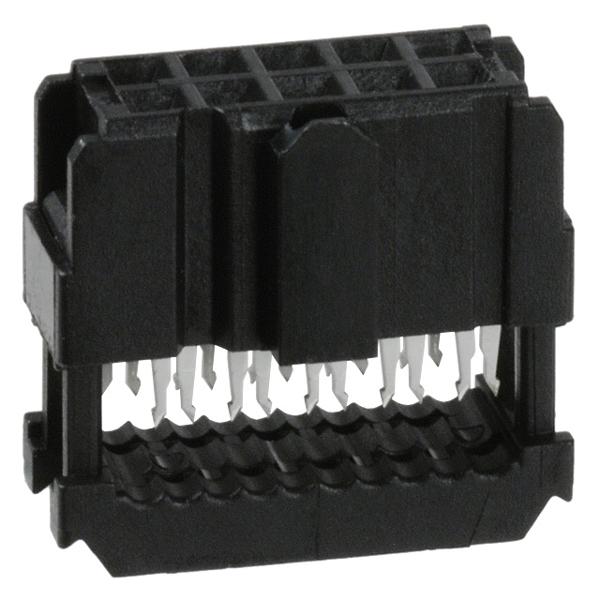

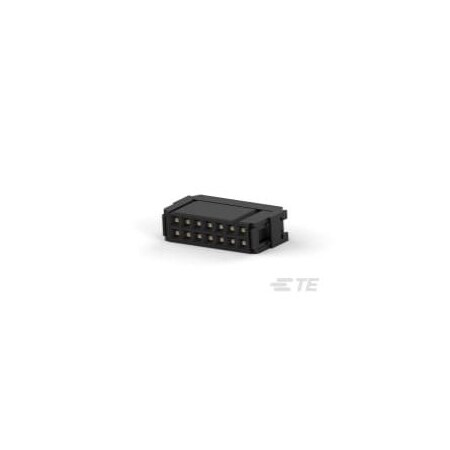

Amp - Te Connectivity Wire-Board Connector Receptacle 14 Position, 2.54Mm - 1658623-2

Amp - Te Connectivity Wire-Board Connector Receptacle 14 Position, 2.54Mm - 1658623-2zoom

Attributes

Key Value
<a target="_blank" href.//www.ibselectronics.co.
Accepts Wire Insulation..787 ? .94?mm?[?.031 ? .
Alternate Mfr Part Numb.1658623-2
Alternate Part No.571-1658623-2
ApplicationWire-to-Board
BrandTE Connectivity / AMP
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorWire & Cable, Receptacle
Connector Height15.16?mm?[?.5968?in?]
Connector Mounting TypeCable Mount (Free-Hangi.
Connector ProfileLow
Connector SystemWire-to-Board
Connector Width6.1?mm?[?.2402?in?]
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold or Palladium Nicke.
Contact Mating Area Pla..76??m?[?29.92??in?]
Contact PlatingGold
Contact TypeSocket, Tuning Fork
Country of Origin (subj.China
Factory Pack Quantity1080
Header TypePin Header
Housing ColorBlack
Housing GenderReceptacle
Housing MaterialThermoplastic
ManufacturerTE Connectivity
Manufacturer Part No.1658623-2
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWithout
Mounting StyleFree Hanging
Number of Contacts14
Number of Positions14
Number of Positions / C.14
Number of Rows2
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
PackagingTube
Packaging MethodBox & Tube, Tube
Packaging Quantity60
Panel Mount FeatureWithout
PCB Mount AlignmentWithout
PCB Mount OrientationVertical
PCB Mount RetentionWithout
Pitch2.54 mm, 2.54 mm (0.100.
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product TypeConnector Assemblies, R.
Row Spacing2.54 mm
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-LATCH NOVO, AMP-LAT.
TerminationIDC
Termination Method to P.Through Hole - Solder
Termination Method to W.Insulation Displacement.
Termination StyleSolder Pin, IDC
TradenameAMP-LATCH
TypeReceptacle, Ribbon Cabl.
UL Flammability RatingUL 94V-0
Wire Size.08 ? .15, 28 ? 26, 158.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark29M73271.331663AMP - TE CONNECTIVITY1.33 @ 25
Onlinecomponents.com1658623-21.382601457TE Connectivity1.382 @ 25
TE Connectivity1658623-21.4075114757TE Connectivity (TE)1.40751 @ 25
thumbzoomIBS Electronics1658623-21.56125TE Connectivity1.56 @ 25
thumbzoomswatee.com1658623-22.051982TE Connectivity2.05 @ 25
us.rs-online.com700857062.3411047TE Connectivity2.34 @ 25
thumbzoomZoroG5010412192.426025Te Connectivity2.42 @ 60
AmazonTPB07KWHQNDR52.11251TE Connectivity / AMP Brand52.1 @ 25
AmazonSCB07KWHQNDR72.0125TE Connectivity / AMP72.0 @ 25
