TE Connectivity 1658623-4

B073RPTJHT

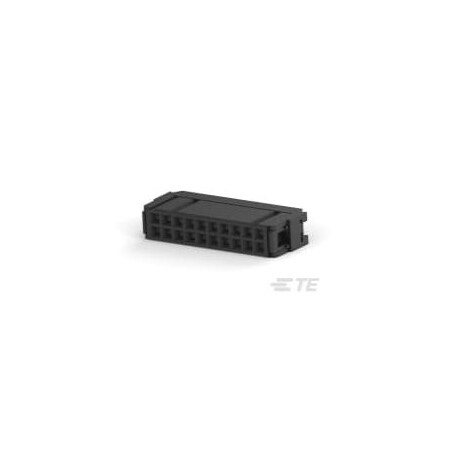

TE CONNECTIVITY 1658623-4 AMP LATCH 20 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 10 item(s)

TE CONNECTIVITY 1658623-4 AMP LATCH 20 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle - 10 item(s)zoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
Alternate Part No.571-1658623-4
AngleStraight
ApplicationWire-to-Board, Signal
Base Product Number1658623
BrandTE Connectivity / AMP
Cable TerminationIDC
CategoryConnectors, Interconnec.
ColorBlack
Connection MaterialPhosphor Bronze
Connector Terminates ToWire & Cable
Connector TypeReceptacle
Contact FinishGold or Gold-Palladium
Contact Finish Thickness30.0?in (0.76?m)
Contact GenderSocket (Female)
Contact MaterialPhosphor Bronze
Contact PlatingGold Over Nickel, Gold
Contact Plating Thickne.0.76 ?m
Contact TypeForked, Socket, Tuning .
Current Rating1 A
DescriptionCONN RCPT 20POS IDC 26-.
Detailed Description20 Position Rectangular.
Digi-Key Part NumberASC20B-ND
Fastening Type-
FeaturesFeed Through
Flammability RatingUL 94 V-0
Height15.16 mm
Hole Center to Center2.54 mm
Housing GenderReceptacle
Housing MaterialThermoplastic
ItemConnector
Length29.97 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1658623-4
Manufacturer Product Nu.1658623-4
Manufacturer Standard L.17 Weeks
MaterialThermoplastic
Max. Insulation Dia.0.94 mm
Max. Single Wire Size26 AWG
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Min. Single Wire Size28 AWG
Mounting TypeFree Hanging (In-Line)
Number of Contacts20
Number of Positions20
Number of Rows2
Operating Temperature-55 to +105 ?C
Overall Length1.18 "
PackageBulk
PackagingTube
Pin Spacing0.1 in
Pitch2.54 mm, 0.100" (2.54mm.
Primary TypeCable Connector
Product CategoryHeaders & Wire Housings
Product HeaderNovo Type AMP-LATCH? Ri.
Product StatusActive
Product TypeConnector Assemblies
Row Spacing2.54 mm, 0.100" (2.54mm)
SeriesAMP-Latch, AMP-LATCH NO.
Special FeaturesMilitary Polarized
StandardsCSA Certified; UL E2847.
Terminal TypeThrough Hole - Solder; .
TerminationIDC
Termination StyleIDC
TradenameAMP-Latch
TypeReceptacle, Ribbon Cabl.
Width0.2402 in
Wire Gauge26-28 AWG
Wire TypeRibbon Cable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark73K62291.041846AMP - TE CONNECTIVITY1.04 @ 25
Onlinecomponents.com1658623-41.2619886TE Connectivity / AMP Brand1.26 @ 25
thumbzoomNEP Electronics1658623-41.4932504025TE Connectivity1.4932 @ 5040
WaldomTE CONNECTIVITY AMP BRAND 1658623-41.5660953TE CONNECTIVITY/AMP BRAND1.56 @ 60
thumbzoomCarlton Bates Company741149192341.77125TE CONNECTIVITY1.77 @ 25
RS Delivers782-88052.028125TE Connectivity2.028 @ 25
thumbzoomDigi-Key8254362.2060816018TE Connectivity AMP Connectors2.20608 @ 25
thumbzoomswatee.com1658623-42.761266TE Connectivity2.76 @ 25
us.rs-online.com700427873.121229TE Connectivity3.12 @ 25
AmazonTPB00DED9R7M12.631252T-E Connectivity12.63 @ 25
thumbzoomZoroG201041243155.46025Te Connectivity155.4 @ 60
