TE Connectivity 1658678-1

B00KSNLLOI

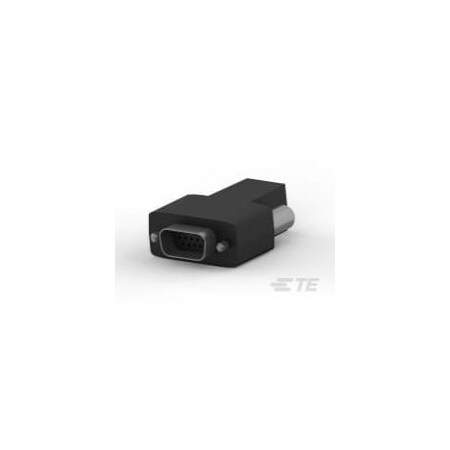

TE Connectivity Part Number 1658678-1

TE Connectivity Part Number 1658678-1zoom

Attributes

Key Value
Alternate Part No.571-1658678-1
AngleStraight
Base Product Number1658678
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2.28?mm?[?.09?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorWire & Cable
Connector StylePlug, D-Sub, High Densi.
Connector SystemCable-to-Cable
Connector TypePlug for Male Contacts
Contact Size22
Contact TypeSignal
DescriptionCONN D-SUB HD HOUSING P.
Detailed DescriptionPlug for Male Contacts .
Dielectric MaterialPolyamide (PA), Nylon, .
Digi-Key Part NumberA31504-ND
FeaturesBackshell, Grounding In.
Flange FeatureCable Side (4-40)
GenderMale
Housing MaterialPVC
Ingress Protection-
Insert MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1658678-1
Manufacturer Product Nu.1658678-1
Manufacturer Standard L.4 Weeks
Mating Connector LockWith
Mating Connector Lock T.Jackscrews
Mating Cycles-
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Contacts15
Number of Positions15
Number of Rows3, 2
Operating Temperature-
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageBulk
Package Quantity1
Primary TypeD-Sub
Product CategoryD-Sub Standard Connecto.
Product StatusActive
SealableNo
SeriesAMPLIMITE HDP-22, HDP-2.
Shell Finish Thickness200?in (5.08?m)
Shell MaterialFull Metal Shell, Steel
Shell Material, FinishSteel, Tin Plated
Shell PlatingTin
Shell Size1
Shell Size, Connector L.1 (DE, E) High Density
Shell TypeFull Metal Shell
Shield MaterialSteel
ShieldedYes
Special FeaturesShielded
StandardsUL94 V-0
TerminationCrimp
Termination StyleCrimp
TypeCable Plug
Wire Size22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1658678-18.99101000TE CONNECTIVITY/AMP BRAND8.99 @ 10
thumbzoomCarlton Bates Company7411499787210.011In StockTE CONNECTIVITY10.01 @ 1
HotendaH119031611.11114TE Connectivity AMP Connectors11.11 @ 1
TE Connectivity1658678-111.38691181TE Connectivity (TE)11.3869 @ 1
Future Electronics764234113.512200In StockTE Connectivity13.512 @ 200
thumbzoomNewark42K670013.521143AMP - TE CONNECTIVITY13.52 @ 1
Onlinecomponents.com1658678-115.072901TE Connectivity15.07 @ 2
thumbzoomDigi-Key76964815.231351TE Connectivity AMP Connectors15.23 @ 1
us.rs-online.com7004135516.87110TE Connectivity16.87 @ 1
thumbzoomswatee.com1658678-117.391124TE Connectivity17.39 @ 1
RS Delivers718-3953P21.108190TE Connectivity21.108 @ 1
thumbzoomZoroG50591246198.751In StockTe Connectivity98.75 @ 1
