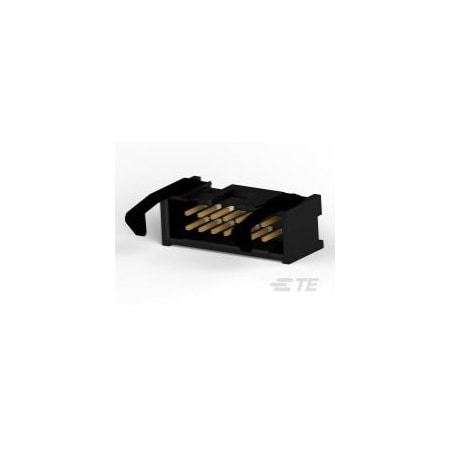

TE CONNECTIVITY / AMP 1761606-5 WIRE-BOARD CONN, HEADER, 14POS, 2.54MM (100 pieces)

TE CONNECTIVITY / AMP 1761606-5 WIRE-BOARD CONN, HEADER, 14POS, 2.54MM (100 pieces)zoom

Attributes

Key Value
AngleVertical
Applications-
Base Product Number1761606
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER VERT 14POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA31168-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Ingress Protection-
Insulation ColorBlack
Insulation Height0.404" (10.26mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1761606-5
Manufacturer Standard L.14 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageTube
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-Latch, AMP-LATCH Se.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Through Hole
TypeVertical Header
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager Electronics1761606-52.589001381TE Connectivity2.58 @ 900
Onlinecomponents.com1761606-53.26110363TE Connectivity / AMP Brand3.26 @ 10
thumbzoomZoroG0009395745.252010Te Connectivity5.25 @ 20
Future Electronics21833825.61612460TE Connectivity5.616 @ 10
us.rs-online.com700858025.9690010TE Connectivity5.96 @ 900
Avnet42K67436.1211112TE Connectivity6.12 @ 10
thumbzoomNewark42K67436.381803AMP - TE CONNECTIVITY6.38 @ 10
thumbzoomDigi-Key7691126.571212202TE Connectivity AMP Connectors6.5712 @ 10
AmazonTPB07KWHSYDH61.881101TE Connectivity / AMP Brand61.88 @ 10
AmazonSCB07KWHSYDH77.4110TE Connectivity / AMP77.4 @ 10
