TE Connectivity 1761607-3

B010IIWWT0

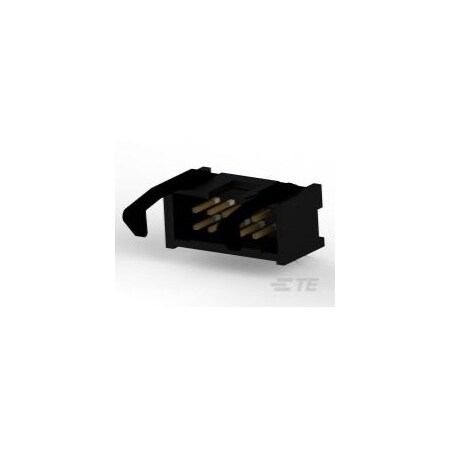

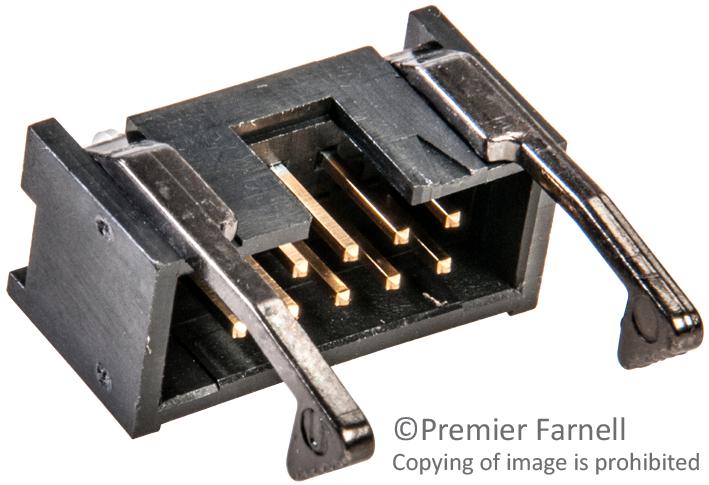

TE Connectivity Part Number 1761607-3

TE Connectivity Part Number 1761607-3zoom

Attributes

Key Value
Alternate Part No.571-1761607-3
AngleRight Angle
Applications-
Base Product Number1761607
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.362" (9.20mm)
Insulation MaterialPolybutylene Terephthal.
Latching TypeEjection
ManufacturerTE Connectivity
Manufacturer Part No.1761607-3
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageTube
Part StatusActive
Pitch2.54 mm, 2.54 mm (0.100.
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-LATCH, AMP-LATCH Se.
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Through Hole
Termination Post Length2.6 mm
Termination StyleThrough Hole
TradenameAMP-LATCH
TypeRight Angle Header, Shr.
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY 1761607-32.6759810TE Connectivity2.67 @ 598
Avnet1761607-32.817261324TE Connectivity2.817 @ 26
Onlinecomponents.com1761607-33.061404TE Connectivity / AMP Brand3.06 @ 10
thumbzoomNewark74K45754.32117010AMP - TE CONNECTIVITY4.32 @ 1170
thumbzoomZoroG2009399614.422610Te Connectivity4.42 @ 26
us.rs-online.com700857934.92110TE Connectivity4.92 @ 10
thumbzoomswatee.com1761607-36.181211TE Connectivity6.18 @ 10
Digi-Key147651786.19851327TE Connectivity AMP Connectors6.1985 @ 10
RS Delivers798-14017.884110TE Connectivity7.884 @ 10
AmazonTPB07KWJ1N3B55.511101TE Connectivity / AMP Brand55.51 @ 10
