TE Connectivity 1761607-7

B06X9JJLY2

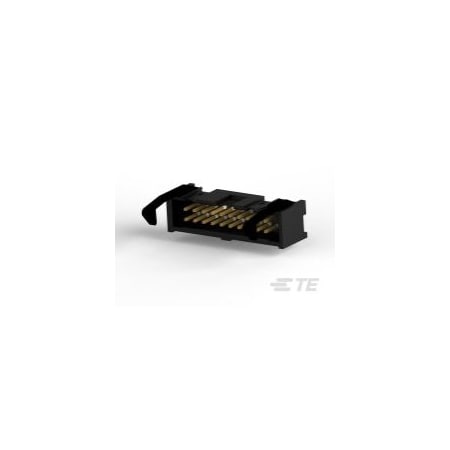

TE CONNECTIVITY 1761607-7 AMP-Latch 20 Position Dual Row Through-Hole Right Angle Pin Header - 5 Item(s)

TE CONNECTIVITY 1761607-7 AMP-Latch 20 Position Dual Row Through-Hole Right Angle Pin Header - 5 Item(s)zoom

Attributes

Key Value
Applications-
Base Product Number1761607
CategoryConnectors, Interconnec.
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationSignal
ConnectorPlug, Printed Circuit B.
Connector Height9.19?mm?[?.36?in?]
Connector Mounting TypeBoard Mount
Connector ProfileLow
Connector SystemWire-to-Board
Connector TypeHeader
Contact Base MaterialPhosphor Bronze
Contact Current Rating .1
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold Flash
Contact Mating Area Pla..762??m?[?30 ? 30??in?]
Contact ShapeSquare
Contact TypeMale Pin, Pin
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER R/A 20POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA31179-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Header TypePin Header
Housing ColorBlack
Housing MaterialPBT
Ingress Protection-
Insulation ColorBlack
Insulation Height0.362" (9.20mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1761607-7
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating AlignmentWith
Mating Alignment TypeCenter
Mating Entry LocationTop
Mating RetentionWith
Mating Retention TypeLatch
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions20
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Operating Temperature R.-65 ? 105??C?[?-85 ? 22.
Overall Contact Length-
PackageTube
Packaging MethodTube
Packaging Quantity16
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount AlignmentWithout
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
Row-to-Row Spacing2.54?mm?[?.1?in?]
SeriesAMP-Latch
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Method to P.Through Hole - Solder
Termination Post2.6?mm?[?.102?in?]
UL Flammability RatingUL 94V-0
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomExcessParts.Net1761607-71.25120TE CONNECTIVITY1.25 @ 1
Onlinecomponents.com1761607-74.1616205TE Connectivity4.16 @ 16
TE Connectivity1761607-75.13861719TE Connectivity (TE)5.1386 @ 1
Future Electronics56334746.33611420TE Connectivity6.336 @ 1
RS Delivers162-08126.48841In StockTE Connectivity6.4884 @ 1
Mouser571-1761607-76.591280TE Connectivity6.59 @ 1
Newark84AC35046.711288AMP - TE CONNECTIVITY6.71 @ 1
thumbzoomZoroG7009399597.0368In StockTe Connectivity7.0 @ 368
thumbzoomDigi-Key7691239.181392TE Connectivity AMP Connectors9.18 @ 1
