TE Connectivity 1761607-9

B00KSO9P9U

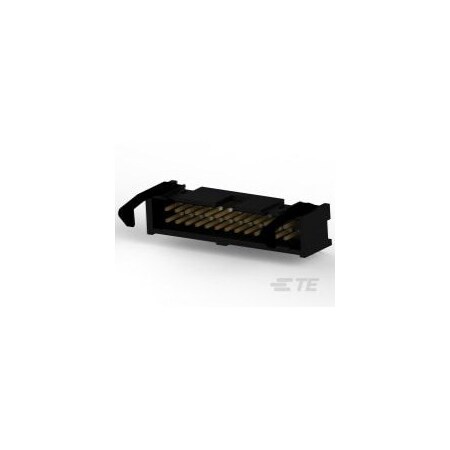

TE Connectivity Part Number 1761607-9

TE Connectivity Part Number 1761607-9zoom

Attributes

Key Value
AngleRight Angle
Applications-
Base Product Number1761607
Body OrientationRight Angle
BrandTE Connectivity
CategoryConnectors, Interconnec.
ColorBlack
Connector SystemWire to Board
Connector TypeHeader
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating1.0A
Current Rating (Amps)1A per Contact
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Ingress Protection-
Insulation ColorBlack
Insulation Height0.362" (9.20mm)
Insulation MaterialPolybutylene Terephthal.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Through H.
Number Of Contacts26
Number of Contacts26
Number of Positions26
Number of Positions Loa.All
Number Of Rows2
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageTube
Part StatusActive
Pitch2.54 mm (0.100"), 2.54mm
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-LATCH, AMP-LATCH Se.
Shrouded/UnshroudedShrouded
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder, Through Hole
Termination MethodSolder
TypeRight Angle Header
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark42K67501.441218AMP - TE CONNECTIVITY1.44 @ 25
thumbzoomRS Delivers161-87291.58281325TE Connectivity1.5828 @ 25
WaldomTE CONNECTIVITY AMP BRAND 1761607-94.5326702TE CONNECTIVITY/AMP BRAND4.53 @ 26
thumbzoomZoroG1009398327.391325Te Connectivity7.39 @ 25
Onlinecomponents.com1761607-97.6713610TE Connectivity7.67 @ 25
us.rs-online.com700858148.0358525TE Connectivity8.03 @ 585
Digi-Key147763078.892156511144TE Connectivity AMP Connectors8.8921565 @ 25
AmazonTPB07KWKK9V846.21251TE Connectivity / AMP Brand46.2 @ 25
