TE Connectivity 1761608-9

B06WW8B4S5

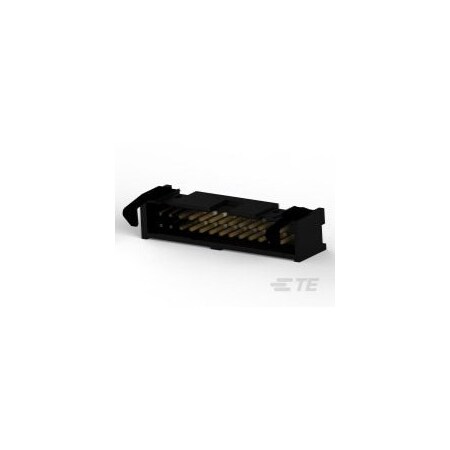

TE CONNECTIVITY 1761608-9 26 Position Vertical Short Eject Latch Pin Header - 5 Item(s)

TE CONNECTIVITY 1761608-9 26 Position Vertical Short Eject Latch Pin Header - 5 Item(s)zoom

Attributes

Key Value
Applications-
Base Product Number1761608
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.237" (6.02mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Ingress Protection-
Insulation ColorBlack
Insulation Height0.404" (10.26mm)
Insulation MaterialPolybutylene Terephthal.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions26
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageTube
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-Latch
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1761608-94.8262856TE CONNECTIVITY/AMP BRAND4.8 @ 13
Newark97X76065.58585In StockAMP - TE CONNECTIVITY5.58 @ 585
Onlinecomponents.com1761608-96.149131113TE Connectivity6.149 @ 1
Digi-Key147683297.233511275TE Connectivity AMP Connectors7.2335 @ 1
Future Electronics29651277.27824138TE Connectivity7.27824 @ 1
thumbzoomZoroG6009395929.5713In StockTe Connectivity9.57 @ 13
AmazonSCB00DK06UCO24.191In StockTE Connectivity / AMP0.00062524.19 @ 1
AmazonTPB07KWHV72M36.091In Stock1TE Connectivity / AMP Brand36.09 @ 1
