TE Connectivity 176301-1

B00KSNW5FW

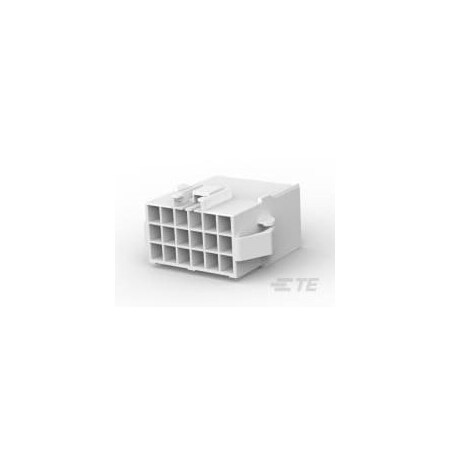

TE Connectivity Part Number 176301-1

TE Connectivity Part Number 176301-1zoom

Attributes

Key Value
ApplicationPower, Signal
Base Product Number176301
CategoryConnectors, Interconnec.
ColorNatural
Connection MaterialCopper Alloy
Connector Terminates ToWire & Cable
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeMale Pin, Tab
Current Rating7 A
DescriptionCONN RCPT HSG 18POS 3.9.
Detailed Description18 Rectangular Connecto.
Digi-Key Part NumberA122364-ND
Fastening TypeLocking Ramp
FeaturesPanel Mount Feature, -
Flammability RatingUL 94 V-0
For Use WithPlug Housing
Height17.6 mm
Hole Center to Center3.96 mm
Insulation MaterialPolyamide (PA66), Nylon.
ItemHousing
Length29 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.176301-1
Manufacturer Standard L.22 Weeks
MaterialNylon
Max. Temp.105?C
Max. Voltage300V AC
MfrTE Connectivity AMP Con.
Mounting TypePanel Mount, Snap-In
NoteContacts Not Included
Number of Contacts18
Number of Positions18
Number of Rows3
Operating Temperature-30?C ~ 105?C
PackageBulk
Package Quantity1
Pitch3.96 mm (0.156"), 0.156.
Primary TypeRectangular
Product StatusActive
Row Spacing0.181" (4.60mm)
SeriesUniversal Power, AMP Un.
Terminal TypeCrimp
TypeReceptacle

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com176301-11.7211301TE Connectivity / AMP Brand1.72 @ 25
HotendaH14764381.7872125TE Connectivity AMP Connectors1.7872 @ 25
Newark95Y89742.22125AMP - TE CONNECTIVITY2.22 @ 25
thumbzoomDigi-Key11365592.402411036TE Connectivity AMP Connectors2.4024 @ 25
RS Delivers719-9312P3.252125TE Connectivity3.252 @ 25
us.rs-online.com702842693.96125TE Connectivity3.96 @ 25
AmazonSCB07KVPJLP6108.0125TE Connectivity / AMP108.0 @ 25
thumbzoomZoroG7059130462700.0125Te Connectivity2700.0 @ 25
