TE Connectivity 1-2305909-2

B086WP4FQB

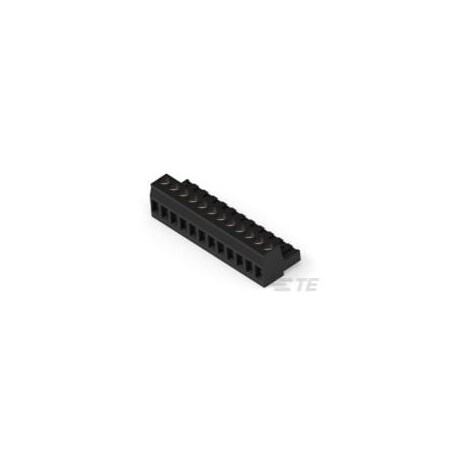

1-2305909-2, Conn Terminal Block F 12 POS 5mm Screw RA Cable Mount 10A/Contact (5 Items)

1-2305909-2, Conn Terminal Block F 12 POS 5mm Screw RA Cable Mount 10A/Contact (5 Items)zoom

Attributes

Key Value
Base Product Number2305909
Body OrientationStraight
BrandTE Connectivity
CategoryConnectors, Interconnec.
ColorBlack
ColourBlack
Contact MaterialCopper Alloy
Contact Mating FinishNickel
Contact Tail Length-
Current - IEC-
Current - UL10 A
Current Rating10A
DepthDepth
DescriptionSMT TB PARALLEL PLUG, 5.
Detailed Description12 Position Terminal Bl.
Digi-Key Part NumberA126294-ND
FeaturesRetention Latches (Non-.
GenderMale
Header Orientation-
Housing MaterialThermoplastic
Ingress Protection-
Insulation Height0.591" (15.00mm)
Length60mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-2305909-2
Manufacturer Standard L.18 Weeks
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
Number Of Contacts12
Number of Levels1
Number of Positions12
Number Of Rows1
Operating Temperature-
PackageBulk
Pitch5mm, 0.197" (5.00mm)
Plug Wire Entry180?
Positions Per Level12
Product StatusActive
Screw Size-
SeriesTB, WireMate, TB, Bucha.
StockStock
Termination MethodScrew
Termination StyleScrew
Torque - Screw0.5 Nm (4.4 Lb-In)
TypeTerminal Block Plug, Pl.
Voltage - UL300 V
Voltage Rating300 V ac
Width9.8mm
Wire Gauge or Range - A.12-26 AWG
Wire Gauge or Range - m.-
Wire Strip Length7mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers175-33493.94085025TE Connectivity3.9408 @ 50
WaldomTE CONNECTIVITY AMP BRAND 1-2305909-24.6150429TE CONNECTIVITY/AMP BRAND4.61 @ 50
thumbzoomZoroG0059478026.135025Te Connectivity6.13 @ 50
thumbzoomDigi-Key75616956.8376143TE Connectivity AMP Connectors6.8376 @ 25
Newark87AJ90318.5450429AMP - TE CONNECTIVITY8.54 @ 50
