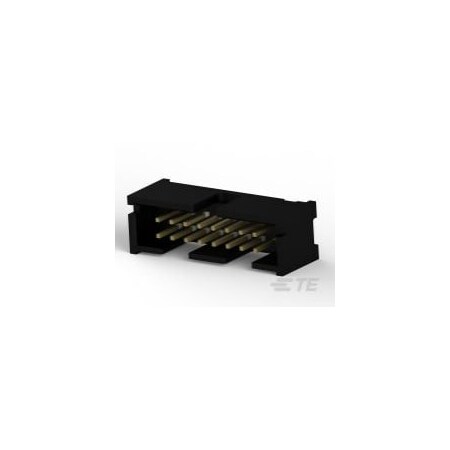

TE CONNECTIVITY / AMP 5104338-3

mpn5104338-3
brandname: TE Connectivity
manufacturername: TE Connectivity

Headers & Wire Housings 100X100 HDR 2X008P VRT LOW PRO

Brand: TE CONNECTIVITY / AMP
PartNumber: 5104338-3
Model: 5104338-3
PackageQuantity: 1
Manufacturer: TE CONNECTIVITY / AMP
Label: TE CONNECTIVITY / AMP

Attributes

Key	Value
Alternate Mfr Part Numb.	5104338-3
Applications	-
Base Product Number	5104338
Category	Connectors, Interconnec.
Connector Style	Plug
Connector Type	Header
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.120" (3.05mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin, Pin
Country of Origin (subj.	China
Current Rating (Amps)	1A per Contact
Description	CONN HEADER VERT 16POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A97491-ND
Fastening Type	Push-Pull
Features	Keying Slot
For Use With	Mates with Receptacles
Header Type	Pin Header
Height	8.813 mm[.347 in]
Housing Style	4Sided
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.385" (9.78mm)
Insulation Material	Polyphthalamide (PPA), .
Insulation Resistance	5000 MegaOhms
Length	27.94 mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	5104338-3
Manufacturer Standard L.	12 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	16
Number of Positions	16
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	-
Package	Tube
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Polarization	With
Primary Type	Board Mount
Product Status	Active
Product Type	Connector
Profile	Low
Row Spacing - Mating	0.100" (2.54mm)
Series	AMP-Latch, AMP-LATCH Se.
Shrouded	Yes
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Temperature Rating	High
Termination	Solder, Kinked Pin, Sol.
Type	Header
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Newark	40P9640	0.592	1	304		AMP - TE CONNECTIVITY	0.592 @ 25
Onlinecomponents.com	5104338-3	1.85	1	19414		TE Connectivity / AMP Brand	1.85 @ 25
Waldom	TE CONNECTIVITY AMP BRAND 5104338-3	2.11	90	594		TE CONNECTIVITY/AMP BRAND	2.11 @ 90
Zoro	G700940764	3.05	90	25		Te Connectivity	3.05 @ 90
Digi-Key	1596778	3.8532	1	1472		TE Connectivity AMP Connectors	3.8532 @ 25
us.rs-online.com	70346546	4.88	90	25		TE Connectivity	4.88 @ 90
AmazonTP	B07KWJHCCQ	50.83	1	25	1	TE Connectivity / AMP Brand	50.83 @ 25
AmazonSC	B07KWJHCCQ	50.83	1	25		TE Connectivity / AMP	50.83 @ 25
