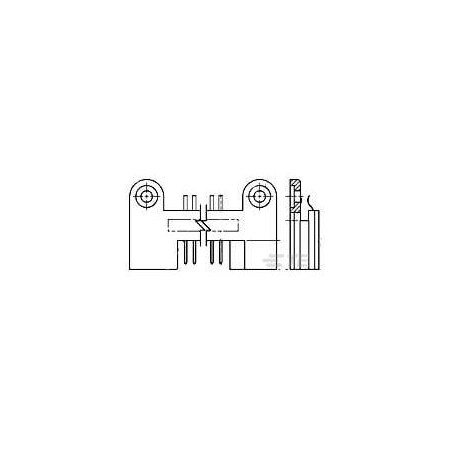

TE Raychem 530761-6

B07NQT51TH

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Applications-
Base Product Number530761
CategoryConnectors, Interconnec.
ColorBlue
Connection MaterialBrass
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - Post-
Contact Finish Thicknes.50.0?in (1.27?m)
Contact Finish Thicknes.-
Contact Length - Mating0.181" (4.60mm)
Contact Length - Post-
Contact MaterialBrass
Contact Plating Thickne.50 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating (Amps)-
Fastening TypePush-Pull
FeaturesCard Extender, Mounting.
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlue
Insulation Height-
Insulation MaterialDiallyl Phthalate (DAP)
ItemPCB Mount Header
Mated Stacking Heights-
MaterialDiallyl Phthalate
Material Flammability R.-
MfrTE Connectivity Aerospa.
Mounting TypeBoard Edge, Straddle Mo.
Number of Contacts100
Number of Positions100
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageBulk
Package Quantity1
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating0.100" (2.54mm)
SeriesMilitary, MIL-DTL-55302.
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
Terminal FinishTin-Lead Plated
Terminal TypeThrough Hole
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Allied ElectronicsE5182807381.08490In StockTE Connectivity381.084 @ 90
WaldomTE CONNECTIVITY AMP BRAND 530761-6381.8415TE CONNECTIVITY/AMP BRAND381.84 @ 1
Digi-Key1151000412.67890In StockTE Connectivity Aerospace, Defense and Marine412.678 @ 90
thumbzoomZoroG605894018463.991In StockTe Connectivity463.99 @ 1
Newark91B6276488.8690In StockAMP - TE CONNECTIVITY488.86 @ 90
