5-747904-5

B00LPLP0B2

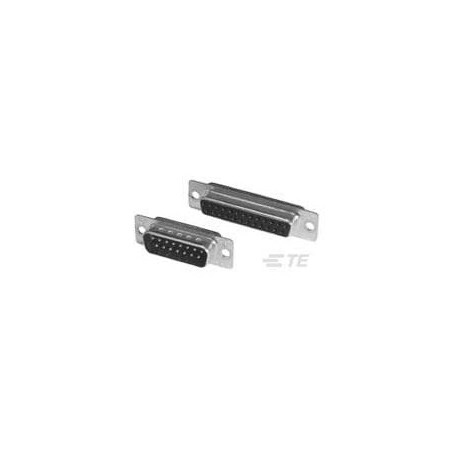

TE CONNECTIVITY 5-747904-5 D SUB CONNECTOR, STANDARD, 9POS, PLUG (10 pieces)

TE CONNECTIVITY 5-747904-5 D SUB CONNECTOR, STANDARD, 9POS, PLUG (10 pieces)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5-747904-5
Alternate Part No.571-5-747904-5
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number747904
BrandTE Connectivity
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.11?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StylePlug, D-Sub
Connector SystemCable-to-Board
Connector TypePlug, Male Pins
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSolder Cup
Contact Current Rating .3
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Form-
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN D-SUB PLUG 9POS PN.
Detailed Description9 Position D-Sub Plug, .
Dielectric MaterialPolybutylene Terephthal.
Digi-Key Part Number5-747904-5-ND
EnclosureWithout
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthread.
GenderMale
Housing FinishTin
Ingress Protection-
Insert MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-747904-5
Manufacturer Product Nu.5-747904-5
Manufacturer Standard L.15 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Mounting Holes
MfrTE Connectivity AMP Con.
Mounting StylePanel
Mounting TypePanel Mount
Number of Contacts9
Number of Positions9
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTray
PackagingTray
PCB Contact Termination.Tin-Copper
PCB Mount Retention TypeNone
Primary TypeD-Sub
Product CategoryD-Sub Standard Connecto.
Product StatusActive
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialFull Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell PlatingTin
Shell Size1
Shell Size, Connector L.1 (DE, E)
Shell TypeFull Metal Shell
ShieldedYes
StandardsUL94 V-0
TerminationSolder, Solder Cup
Termination Method to W.Solder
Termination StyleSolder
TypeCable Plug
Voltage Rating250V, 250 V
Wire Gauge-
Wire Size.5 ? .6, 20, 20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5-747904-51.912335TE Connectivity / AMP Brand1.9 @ 50
WaldomTE CONNECTIVITY AMP BRAND 5-747904-51.98301502TE CONNECTIVITY/AMP BRAND1.98 @ 50
TE Connectivity5-747904-52.2680811889TE Connectivity (TE)2.26808 @ 50
thumbzoomNEP Electronics5-747904-52.7123301411TE Connectivity2.7123 @ 50
thumbzoomNewark40Y30422.9813180TE CONNECTIVITY2.98 @ 50
us.rs-online.com700848923.22157TE Connectivity3.22 @ 50
thumbzoomDigi-Key11219803.6859211770TE Connectivity AMP Connectors3.68592 @ 50
RS Delivers756-1108P3.744150TE Connectivity3.744 @ 50
thumbzoomZoroG7010380644.0250Te Connectivity4.0 @ 50
thumbzoomTME5-747904-54.69150TE Connectivity4.69 @ 50
thumbzoomswatee.com5-747904-54.71379TE Connectivity4.7 @ 50
AmazonTPB00DEDNMAK7.061502TE CONNECTIVITY7.06 @ 50
