5-747908-2

B00LQR4M0A

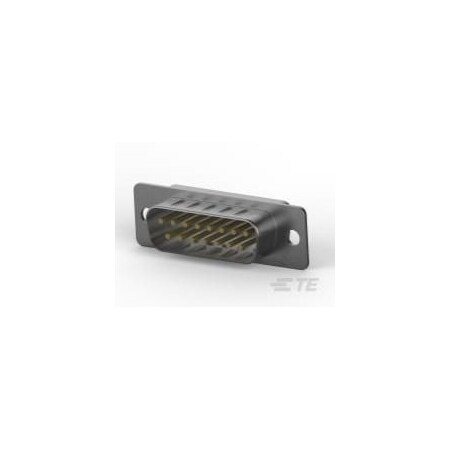

TE CONNECTIVITY / AMP 5-747908-2 D SUB CONNECTOR, STANDARD, 15POS, PLUG (10 pieces)

TE CONNECTIVITY / AMP 5-747908-2 D SUB CONNECTOR, STANDARD, 15POS, PLUG (10 pieces)zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; UL List.
Alternate Mfr Part Numb.5-747908-2
Alternate Part No.571-5-747908-2
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number747908
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Centerline (Pitch)2.77?mm?[?.11?in?]
Circuit ApplicationSignal
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StylePlug, D-Sub
Connector SystemCable-to-Board
Connector TypePlug, Male Pins
Contact Base MaterialPhosphor Bronze
Contact ConfigurationSolder Cup
Contact Current Rating .3
Contact FinishGold
Contact Finish Thickness8.00?in (0.203?m)
Contact Form-
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold Flash, Gold
Contact Size20
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.China
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN D-SUB PLUG 15POS S.
Detailed Description15 Position D-Sub Plug,.
Dielectric MaterialPolybutylene Terephthal.
Digi-Key Part NumberA32503-ND
EnclosureWithout
FeaturesGrounding Indents
Flange FeatureHousing/Shell (Unthread.
GenderMale
Housing FinishTin
Ingress Protection-
Insert MaterialWithout
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5-747908-2
Manufacturer Product Nu.5-747908-2
Manufacturer Standard L.13 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Mounting Holes
MfrTE Connectivity AMP Con.
Mounting StyleWire
Mounting TypeFree Hanging (In-Line)
Number of Contacts15
Number of Positions15
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTray
PCB Contact Termination.Tin-Copper
PCB Mount Retention TypeNone
Primary TypeD-Sub
Product CategoryD-Sub Standard Connecto.
Product StatusActive
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialSteel, Full Metal Shell
Shell Material, FinishSteel, Tin Plated
Shell PlatingTin
Shell Size2
Shell Size, Connector L.2 (DA, A)
Shell TypeFull Metal Shell
ShieldedYes
StandardsUL94 V-0
TerminationSolder Cup, Solder
Termination Method to W.Solder
Termination StyleSolder
TypeCable Plug
Voltage Rating250V, 250 V
Wire Gauge-
Wire Size.5 ? .6, 20, 20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance Electronics5-747908-21.6514125Tyco Electronics1.6514 @ 25
Hawk Electronics5-747908-22.53125TE Connectivity2.53 @ 25
Avnet5-747908-22.57917245TE Connectivity2.579 @ 25
Onlinecomponents.com5-747908-22.61117523TE Connectivity / AMP Brand2.61 @ 25
Future Electronics82932013.048600025TE Connectivity3.048 @ 6000
TE Connectivity5-747908-23.0660214550TE Connectivity (TE)3.06602 @ 25
WaldomTE CONNECTIVITY AMP BRAND 5-747908-23.11201000TE CONNECTIVITY/AMP BRAND3.11 @ 25
thumbzoomZoroG4010374353.61325Te Connectivity3.61 @ 25
thumbzoomNewark93K40003.9418798AMP - TE CONNECTIVITY3.94 @ 25
thumbzoomDigi-Key9930604.5940819624TE Connectivity AMP Connectors4.59408 @ 25
thumbzoomswatee.com5-747908-25.2311193TE Connectivity5.23 @ 25
us.rs-online.com700415175.4511979TE Connectivity5.45 @ 25
thumbzoomTME5-747908-26.01125TE Connectivity6.01 @ 25
RS Delivers489-24436.49081545TE Connectivity6.4908 @ 25
AmazonTPB07814GZRG141.581252TE CONNECTIVITY141.58 @ 25
AmazonSCB07814GZRG142.85125TE Connectivity142.85 @ 25
