TE Connectivity 650478-5

B0748MH911

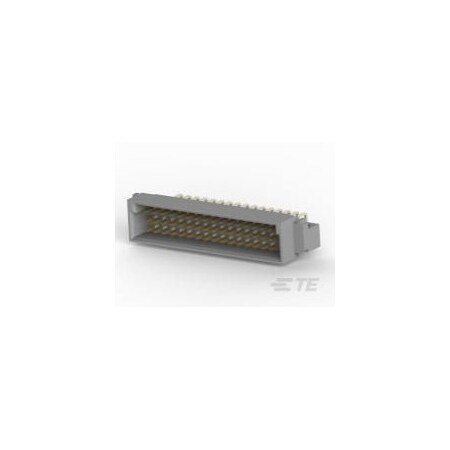

TE CONNECTIVITY 650478-5 44 Position 3 Row 2.54 mm Pitch Right Angle Eurocard Type C Plug - 5 item(s)

TE CONNECTIVITY 650478-5 44 Position 3 Row 2.54 mm Pitch Right Angle Eurocard Type C Plug - 5 item(s)zoom

Attributes

Key Value
Alternate Mfr Part Numb.650478-5
Board-to-Board Configur.Right Angle
Centerline (Pitch)2.54?mm?[?.1?in?]
Circuit ApplicationPower & Signal
ConnectorPlug, Printed Circuit B.
Connector Mounting TypeBoard Mount
Connector StylePlug
Connector SystemBoard-to-Board
Connector TypeConnector Assembly
Contact Base MaterialBrass
Contact Current Rating .1.5
Contact Mating Area Pla.Gold
Contact Mating Area Pla..76??m?[?30 ? 30??in?]
Contact TypePin
Country of Origin (subj.China
DIN LevelII
DIN SizeHalf
Housing MaterialPolyester - GF
Mating AlignmentWith
Mating Alignment TypePolarization
Mating RetentionWith
Number of Columns16
Number of Contacts48
Number of Positions48
Number of Power or Coax.48
Number of Rows3
Number of Signal Positi.48
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250 V
Packaging MethodBox
PCB Contact Termination.Tin-Lead
PCB Mount OrientationRight Angle
PCB Mount RetentionWithout
Pitch2.54 mm (0.100")
Primary TypeDIN 41612 ; Eurocard
Product TypeConnector
Row to Row Spacing2.54 mm[.1 in]
Row-to-Row Spacing2.54?mm?[?.1?in?]
Rows LoadedA, B, C
SealableNo
SizeHalf
Tail Length2.64 mm[.103 in]
Temperature Operating R.-55 ? 125 ?C[-67 ? 257 .
Termination Method to P.Through Hole - Solder
Termination Post2.64?mm?[?.104?in?]
TypeRight Angle Plug
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com650478-52.1213039TE Connectivity / AMP Brand1.9 @ 30
HotendaH7042532.96125TE Connectivity AMP Connectors2.96 @ 25
TE Connectivity650478-53.14111736TE Connectivity (TE)3.1411 @ 25
Future Electronics30307753.5490025TE Connectivity3.54 @ 900
thumbzoomDigi-KeyA1275-ND3.5444125TE Connectivity AMP Connectors3.5444 @ 25
thumbzoomNewark93F50494.0260025AMP - TE CONNECTIVITY4.02 @ 600
us.rs-online.com700870654.2690025TE Connectivity4.26 @ 900
thumbzoomZoroG6009546254.31225Te Connectivity4.31 @ 25
