TE Connectivity 6-1393808-5

B010IJ1BFA

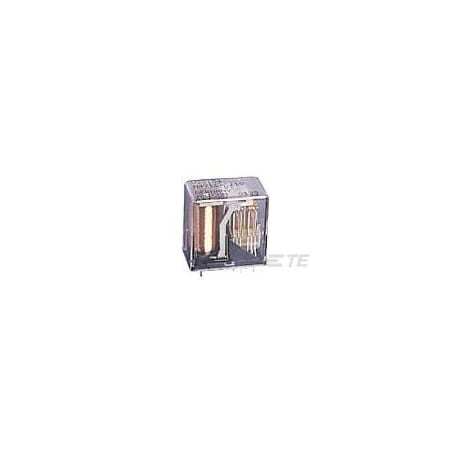

TE Connectivity Part Number 6-1393808-5

TE Connectivity Part Number 6-1393808-5zoom

Attributes

Key Value
Alternate Mfr Part Numb.6-1393808-5
Base Product Number1393808
Body Depth - Relay1.181 in
Body Height - Relay1.181 in
Body Width - Relay0.748 in
CategoryRelays
Coil Current36.3 mA
Coil Insulation-
Coil Resistance550 ?, 550 Ohms
Coil TypeNon Latching, Monostabl.
Coil Voltage20VDC
Coil Volts5V AC
Contact Form4PDT, 4PDT (4 Form C)
Contact Form - Relay2 Form C (CO)
Contact Limiting Breaki.2A
Contact Limiting Contin.2A
Contact Limiting Making.2A
Contact Limiting Short-.2A
Contact MaterialAgNi+Au, Silver (Ag), G.
Contact Rating (Current)2 A
Contact Voltage Rating20 VDC, 125 VAC [ 150 V.
Current Rating2 A
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Dielectric Voltage1000 Vrms Coil and Cont.
Digi-Key Part NumberPB1605-ND
Electrical Connection -.Plug-In/Solder
FeaturesStandard Type, -
FunctionGeneral Purpose
Item - RelayCradle N Relay
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.6-1393808-5
Manufacturer Standard L.25 Weeks
MfrTE Connectivity Potter .
Mounting TypeSocketable, Through Hol.
Must Operate Voltage11.9 VDC
Must Release Voltage-
Number of Poles4
Operate Time7.5 ms
Operating Temp. Range-40 to 70 ?C
Operating Temperature-40?C ~ 70?C
PackageBulk
Power Consumption - Rel.720 mW
Primary TypeSignal Relays
Product StatusActive
Protection CategoryRTI
Relay TypeElectromechanical, Gene.
Release Time3 ms
Seal Rating-
SeriesV23154 AXICOM Series, V.
Switching Voltage125VAC, 150VDC - Max, 1.
Terminal TypePCB-THT
TerminationPCB
Termination StylePlug In
Voltage Rating20 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com6-1393808-568.55134TE Connectivity / AMP Brand68.55 @ 1
WaldomTE CONNECTIVITY AMP BRAND 6-1393808-592.6711TE CONNECTIVITY/AMP BRAND92.67 @ 1
Verical6-1393808-593.911TE Connectivity93.9 @ 1
thumbzoomTMEV23154D720B110110.481In StockTE Connectivity110.48 @ 1
thumbzoomZoroG905865886138.991In StockTe Connectivity138.99 @ 1
thumbzoomNewark70AH7723144.53113AXICOM - TE CONNECTIVITY144.53 @ 1
thumbzoomDigi-Key2053804150.97119TE Connectivity Potter & Brumfield Relays150.97 @ 1
us.rs-online.com70299390216.291In StockTE Connectivity216.29 @ 1
