794954-8

B00LVJKY64

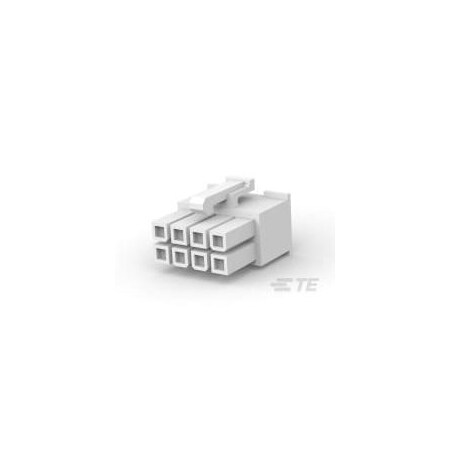

Pin & Socket Connectors RECEPTACLE HSG 8P (5 pieces)

Pin & Socket Connectors RECEPTACLE HSG 8P (5 pieces)zoom

Attributes

Key Value
Accepts Wire Insulation.1.2 ? 3.1?mm?[?.047 ? ..
Agency ApprovalsCSA ; UL
Agency/StandardCSA, UL
Agency/Standard NumberE28476
Alternate Mfr Part Numb.794954-8
Alternate Part No.571-7949548
AngleStraight
Base Product Number794954
BrandTE Connectivity
CategoryConnectors, Interconnec.
Centerline (Pitch)4.2?mm?[?.165?in?]
Circuit ApplicationPower & Signal
Circuit Identification .With
ColorNatural
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector SystemWire-to-Board, Wire-to-.
Connector TypeSoft Shell, Receptacle
Contact LayoutMatrix
Contact RetentionWithout
Contact TerminationCrimp
Contact TypeSocket, Female Socket
Country of Origin (subj.China
CSA File Number208567
DescriptionCONN RCPT HSG 8POS 4.20.
Detailed Description8 Rectangular Connector.
Digi-Key Part NumberA30593-ND
Fastening TypeLatch Lock
Features-
For Use WithPrinted Circuit Board
Glow Wire RatingStandard Part - Not Glo.
Height11.8?mm?[?.464?in?]
Housing ColorNatural
Housing MaterialNylon
Housing TypeReceptacle
Insertion Force15
Insulation MaterialPolyamide (PA), Nylon
Length18?mm?[?.7087?in?]
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.794954-8
Manufacturer Product Nu.794954-8
Manufacturer Standard L.15 Weeks
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line),.
Multiple Contact TypesWithout
NoteContacts Not Included
Number of Contacts8
Number of Positions8
Number of Rows2
Operating Temperature-40?C ~ 105?C
Operating Temperature R.-40 ? 105??C?[?-40 ? 22.
Operating Voltage600
Overall Length18.4 "
PackageBulk
Packaging MethodBag
Packaging Quantity500
Pin Spacing0.17 in
Pitch4.20 mm (0.165"), 0.165.
Primary TypeSoft Shell
Product CategoryHeaders & Wire Housings
Product HeaderPE Series Receptacle Ho.
Product StatusActive
Product TypeHousing
Row Spacing0.165" (4.20mm)
Row-to-Row Spacing.165?mm?[?4.2?in?]
SealableNo
SeriesVAL-U-LOK Series, VAL-U.
Special FeaturesFree Hanging
StandardsDFE-230-5
Termination Method to W.Crimp
TradenameVAL-U-LOK
TypeSocket Housing
UL Flammability RatingUL 94V-2
UL RatingRecognized
VDE TestedNo
Width20?mm?[?.787?in?]
Wire/Cable TypeDiscrete Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark16H62280.09315930AMP - TE CONNECTIVITY0.093 @ 50
Power and Signal Group794954-80.0937600050TE Connectivity0.0937 @ 6000
thumbzoomZoroG0009571580.165750Te Connectivity0.16 @ 57
HotendaH14694090.1708150TE Connectivity AMP Connectors0.1708 @ 50
Future Electronics71895250.175212300TE Connectivity0.1752 @ 50
TE Connectivity794954-80.2069112174TE Connectivity (TE)0.20691 @ 50
Onlinecomponents.com794954-80.213130001TE Connectivity / AMP Brand0.213 @ 50
thumbzoomDigi-Key7015980.225841861TE Connectivity AMP Connectors0.22584 @ 50
RS Delivers495-99280.27841470TE Connectivity0.2784 @ 50
thumbzoomTME794954-80.285689TE Connectivity0.28 @ 50
us.rs-online.com700833740.28641150TE Connectivity0.28641 @ 50
thumbzoomswatee.com794954-80.359153TE Connectivity0.359 @ 50
AmazonSCB00FRC1K7S1.89150TE Connectivity / AMP0.0006251.89 @ 50
AmazonTPB00DWIJOF45.991502T-E Connectivity5.99 @ 50
