TE Raychem 820729-000

B07NQSSZK3

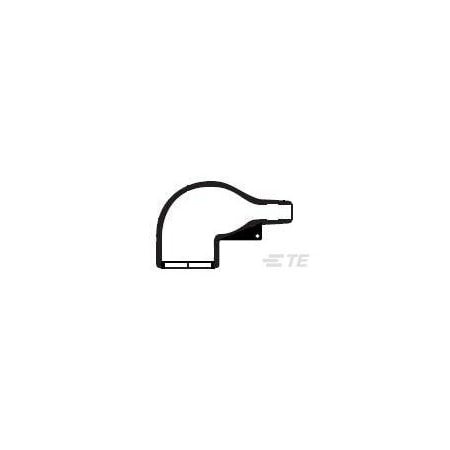

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adhesive TypeGeneral Purpose PreCoat.
Alternate Mfr Part Numb.222K152-3/42-0
Approved StandardsBS-G-198-5-DA, UL 224, .
Base Product Number222K152
Cable Diameter Range8.4 " - 20 in
CategoryCables, Wires - Managem.
ColorBlack
DescriptionHEATSHRINK BOOT R/A SZ5.
Detailed DescriptionHeat Shrink Boot - 90? .
Digi-Key Part Number222K152-3/42-0-ND
Entry Size (Solid or Fi.8
Entry Size (Spin Coupli.12
Features-
Fluid/Chemical Resistan.Suitable for occasional.
Large Diameter Recovered0.882" (22.40mm)
Large Diameter Supplied1.420" (36.07mm)
Large Recovered Length1.496" (38.00mm)
ManufacturerTE Connectivity Raychem.
Manufacturer Product Nu.222K152-3/42-0
Manufacturer Standard L.14 Weeks
MaterialPolyolefin (PO), Semi-R.
Material Systems Code10
MfrTE Connectivity Raychem.
Molded Part TypeMolded Boot
Operating Temperature R.-20 " - 60 ?C
PackageBulk
Package Quantity1
Product StatusActive
SeriesThermofit 222K1, CAP,CR.
Shell Size - Insert52
Small Diameter Recovered0.331" (8.41mm)
Small Diameter Supplied1.420" (36.07mm)
Small Recovered Length0.984" (24.99mm)
StandardsBSG1985DA,DEF Std 5997 .
Temperature Operating R.20 ? 60 ?C
Total Length Recovered1.810" (45.97mm)
Total Length Supplied-
TypeBoot - 90?
Wire/Cable Outside Diam..433 in, .43 in, .63 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7114830016.25112TE Connectivity16.25 @ 1
Mouser655-222K152-3/42-019.02148TE Connectivity / Raychem19.02 @ 1
Newark18J033419.03125In StockRAYCHEM - TE CONNECTIVITY19.03 @ 100
WaldomTE CONNECTIVITY RAYCHEM 222K152-3/42-023.87311TE CONNECTIVITY / RAYCHEM23.87 @ 3
thumbzoomDigi-Key239325225.01In StockTE Connectivity Raychem Cable Protection25.0 @ 1
Onlinecomponents.com820729-00033.581135TE Connectivity / Raychem33.58 @ 1
thumbzoomZoroG705917563108.871In StockRaychem108.87 @ 1
AmazonTPB00TDD4AQU1000.01In Stock3TE Connectivity1000.0 @ 1
