TE Connectivity 826646-3

B00KSVGQIG

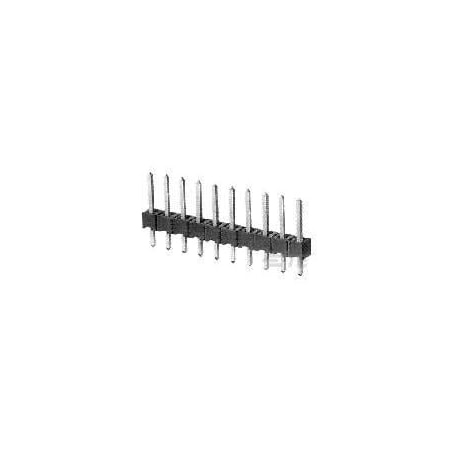

TE Connectivity Part Number 826646-3

TE Connectivity Part Number 826646-3zoom

Attributes

Key Value
Alternate Part No.571-826646-3
Applications-
Base Product Number826646
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
ColorGreen
Connection MaterialPhosphor Bronze
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader, Breakaway
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.3.90?in (0.099?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact GenderPin (Male)
Contact Length - Mating0.228" (5.80mm)
Contact Length - Post0.126" (3.20mm)
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold
Contact Plating Thickne.0.8 ?m
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating (Amps)5A
DescriptionCONN HEADER VERT 3POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA106474-ND
Fastening TypePush-Pull
Features-
Flammability RatingUL 94 V-0
Hole Center to Center2.54 mm
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorGreen
Insulation Height0.110" (2.79mm)
Insulation MaterialPolybutylene Terephthal.
ItemPCB Mount Header
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.826646-3
Manufacturer Product Nu.826646-3
Manufacturer Standard L.23 Weeks
Mated Stacking Heights-
MaterialPBT
Material Flammability R.UL94 V-0
Mating Post Length5.8 mm
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Contacts3
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 105?C
Overall Contact Length0.465" (11.81mm)
PackageBulk
Package Quantity1
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating-
SeriesAMPMODU Mod II
ShroudingUnshrouded
StyleBoard to Board or Cable
Terminal FinishTin Plated; Tin over Ni.
Terminal TypeThrough Hole
TerminationSolder
Termination Post Length3.2 mm
Termination StyleThrough Hole
TradenameAMPMODU
TypeBreakaway
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark18AH05080.23812679AMP - TE CONNECTIVITY0.238 @ 1
thumbzoomTME826646-30.3425235TE Connectivity0.342 @ 5
thumbzoomDigi-Key22761560.5911425TE Connectivity AMP Connectors0.59 @ 1
RS Delivers668-95200.69721172TE Connectivity0.6972 @ 1
thumbzoomswatee.com826646-30.731349TE Connectivity0.73 @ 1
thumbzoomZoroG501044296120.01In StockTe Connectivity120.0 @ 1
