TE Connectivity OACM-5

B00HPLMF5A

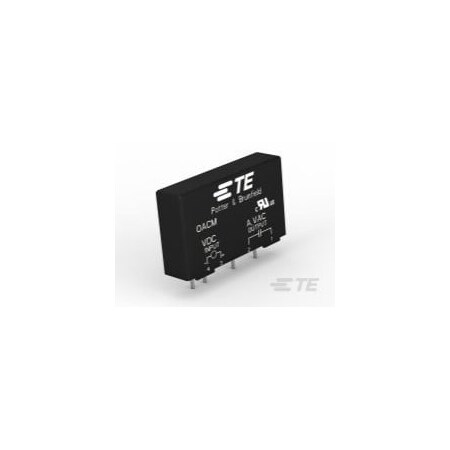

AC Output Module, Slimline, 5 Vdc, Zero Voltage Turn On

AC Output Module, Slimline, 5 Vdc, Zero Voltage Turn Onzoom

Attributes

Key Value
Alternate Mfr Part Numb.3-1393028-8
Case ColorBlack
Connection to HostCircuit Board
Contact Arrangement1 Form A (SPST-NO)
CouplingOptical
Depth0.197 in
Dimensions43.18 x 25.4 x 10.16 mm
Dimensions (L x W x H) .1.717 x .406 x 1.004 in
For Use With2IO Series Mounting Boa.
Housing StyleSlimline
Input Current20 mA
Input Resistance220 Ohms (Typ.)
Input TypeDigital
Input Voltage3 to 8 VDC
Input Voltage Typical5 VDC
Insulation Initial Diel.4000 Vrms
Insulation Resistance100 MegaOhms
Isolation Voltage4000 VAC
Leakage Current1 mA (RMS) (Max.) @ 120.
Length1.7 in
Maximum Operating Tempe.+80 ?C
Minimum Operating Tempe.-30 ?C
Module TypeControl
Mounting TypePCB Mount
Number of Channels1
Number of IO Ports1
Operating Temperature?30 to +80 ?C
Operating Temperature R.-30 to 80?C
Operating Voltage3 V
Output Current (Min).05 A
Output Current Rating.05 to 3 Arms
Output SwitchingZero
Output TypeAnalogue, AC
Output Voltage (Max)280 V
Output Voltage Rating (.24 to 280 Vrms
Package Quantity1
Power Relay TypeSolid State
Primary TypeModule
Product HeaderOACM Series Black Case .
R-Switch & slimSSR Rela.Yes
Range Output24 to 280 VAC
Relay Mounting TypePrinted Circuit Board
Relay Termination TypePrinted Circuit Termina.
SeriesOACM Series
Special FeaturesOptical Isolation
StandardsUL Recognized, CSA Cert.
Supply Voltage8 VDC
Switch Arrangement1 Form A (SPST-NO)
Temperature Operating R.-30 to +80 ?C
Turn Off Time8.3 ms (Max.)
Turn On Time8.3 ms
TypeOutput
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Allied Electronics7121051813.551In StockTE Connectivity13.55 @ 1
Onlinecomponents.com3-1393028-813.91643TE Connectivity / AMP Brand13.9 @ 1
thumbzoomDigi-KeyPB702-ND20.61In StockTE Connectivity Potter & Brumfield Relays20.6 @ 1
HotendaH353649222.31120TE Connectivity Potter & Brumfield Relays22.3 @ 1
thumbzoomNewark06R360922.81200In StockPOTTER&BRUMFIELD - TE CONNECTIVITY22.81 @ 200
RS Delivers783-025925.4521In StockTE Connectivity25.452 @ 1
us.rs-online.com7019931728.441In StockTE Connectivity28.44 @ 1

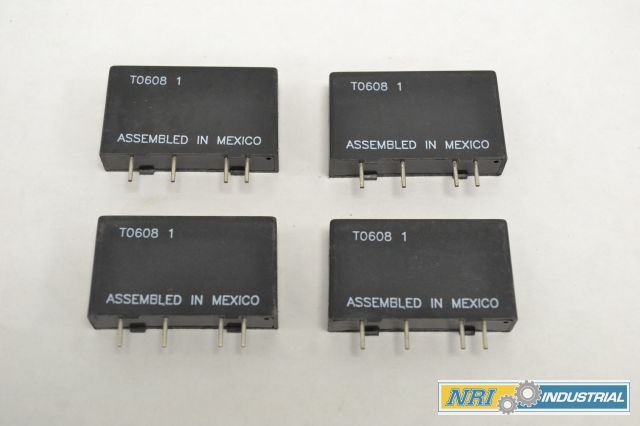

thumbzoomNRI IndustrialB22693545.221In StockPOTTER BRUMFIELD45.22 @ 1
thumbzoomZoroG0059847774958.01In StockTe Connectivity4958.0 @ 1
