RT424A24

B00M2EXS7E

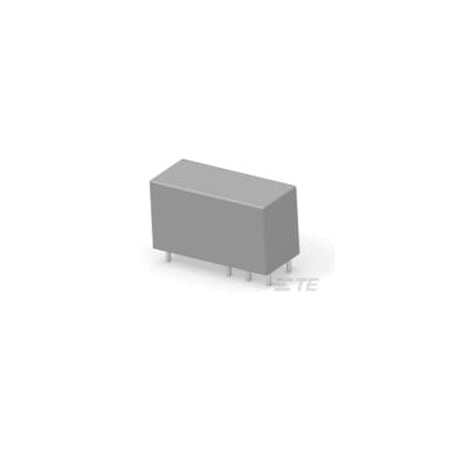

General Purpose Relays DPDT 8A 24VDC Power PCB Relay

General Purpose Relays DPDT 8A 24VDC Power PCB Relayzoom

Attributes

Key Value
Alternate Mfr Part Numb.4-1393243-7
Alternate Part No.655-RT424A24
Base Product NumberRT4
Body Depth - Relay1.142 in
Body Height - Relay0.618 in
Body Width - Relay1/2 in
BrandTE Connectivity / Schra.
CategoryRelays
Coil Current16.7 mA
Coil InsulationClass F
Coil Resistance1.44 kOhms, 1440 ?
Coil TerminationSolder Pin
Coil TypeBistable, 1 Coil, Latch.
Coil Voltage24VDC, 24 VDC
Coil Volts24V DC
Contact Current Rating8 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - Relay2 Form C (CO)
Contact Limiting Breaki.8A
Contact Limiting Making.15 A
Contact Limiting Short-.8A
Contact MaterialAgNi90/10, Silver Nicke.
Contact Rating0.333333333333333A
Contact Rating (Current)8 A
Contact TerminationPin
Contact Voltage Rating250 VAC, 24 VDC
Current Rating8 A
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Voltage2500 Vrms Adjacent Cont.
Digi-Key Part NumberPB2770-ND
FeaturesUL Coil Insulation Clas.
FunctionLatching
Height15.7 mm
Insulation Clearance.394 in
Insulation Creepage.394 in
Item - RelayStandard Power Relay
Length29 mm
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.RT424A24
Manufacturer Product Nu.RT424A24
Manufacturer Standard L.46 Weeks
Maximum Switching Curre.15 A
MfrTE Connectivity Potter .
Mounting StyleThrough Hole
Mounting TypePrinted Circuit Board, .
Must Operate Voltage16.8 VDC
Must Release Voltage-
Number of Poles2
Operate Time10 ms
Operating Temp. Range70 to 85?C
Operating Temperature-10?C ~ 85?C
PackageTube
Part # Aliases4-1393243-7
Power Consumption400 mW
Power Consumption - Rel.400 mW
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product StatusActive
Protection CategoryRTII
Relay TypeElectromechanical, Gene.
Release Time5 ms
Seal RatingSealed - Flux Protection
SeriesRT2 Bistable, SCHRACK, .
StandardsCSARoHSULVDE
Switching Voltage250 VAC, 400VAC - Max
Terminal TypePCB-THT
TerminationPCB
Termination StylePC Pin, Solder Pin
TypeSlim Form
Voltage Rating24 V
Width12.7 mm
