TE Connectivity / AMP T4111001021-000

mpnT4111001021-000
brandname: TE Connectivity
manufacturername: TE Connectivity

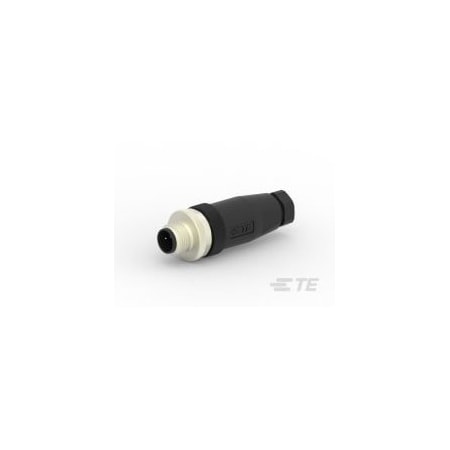

T4111001021-000, Circular Connector Plug - 2 Position - Male Pins - Screw - Gold. (25 Items)

Brand: TE Connectivity / AMP
PartNumber: T4111001021-000
Model: T4111001021-000
Manufacturer: TE Connectivity / AMP
Label: TE Connectivity / AMP

Attributes

Key	Value
Accessory Color	Black
Alternate Mfr Part Numb.	T4111001021-000
Applications	Industrial
Assembly Type	Electrical Connector
Backshell Material, Pla.	Polybutylene Terephthal.
Base Product Number	T41110
Body Material	Polyamide 66 GF25
Cable Opening	0.157" ~ 0.236" (4.00mm.
Category	Connectors, Interconnec.
Circuit Application	Signal
Coding	A Coded
Color	Black, Silver
Connector	Wire & Cable
Connector Style	Plug
Connector System	Wire-to-Wire
Connector Type	Plug, Receptacle, Male .
Contact Current Rating .	4
Contact Finish - Mating	Gold
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Material	Zinc Alloy
Contact Plating	Gold
Contact Type	Male Contact
Country of Origin (subj.	China
Current Rating (Amps)	4A
Durability Rating	100
Environmental Protection	IP67
Environmental Protectio.	Elastomer Sealed
Factory Installed Backs.	No
Family Name	M8/M12 Connector System
Fastening Type	Threaded
Features	Backshell
Feedthrough Type	Yes
Field Serviceable	Yes
Flange	Without
Gender	Male
Ingress Protection	IP67 - Dust Tight, Wate.
Insert Material	Polyamide (PA), Nylon
Insulation Material	Polyamide 66 GF25
IP Dust Sealing Level	6
IP Rating	IP67
IP Water Sealing Level	IP67
Keying	A
Material Flammability R.	-
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention Type	Threaded Coupling
Mating Type	Male
Mfr	TE Connectivity AMP Con.
Mounting Feature	-
Mounting Type	Free Hanging (In-Line),.
Number of Contacts	2
Number of Positions	3, 2
Number of Power Positio.	0
Number of Signal Positi.	3
O-Ring Material	Silicone
Operating Temperature	-40?C ~ 85?C
Operating Temperature R.	-40 ? 85??C?[?-104 ? 18.
Operating Voltage	250
Orientation	A
Package	Bulk
Packaging Quantity	1
Peripheral Seal Material	Silicone
Polarization Code	A
Position Locations Omit.	None
Preloaded	Yes
Prewired	No
Primary Material	Metal
Primary Type	M Series
Product Status	Active
Product Type	Connector
Reverse Gender	Standard
Sealable	Yes
Series	M12 Connector Series, M.
Shell Finish	Nickel
Shell Material	PBT, Brass
Shell Size	20
Shell Size - Insert	M12-2
Shell Size, MIL	-
Shell Type	Plastic
Shielded	No
Shielding	Unshielded
Temperature Operating R.	-40 ? 85
Termination	Screw, Wire-to-Panel
Type	Plug
Voltage Rating	250V, 250 V
Wire Size	18 ? 24, .82 ? .2

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
TE Connectivity	T4111001021-000	3.304	1	114	TE Connectivity (TE)	3.304 @ 25
Zoro	G200976713	4.28	50	25	Te Connectivity	4.28 @ 50
Newark	42AJ1640	4.46	50	25	AMP - TE CONNECTIVITY	4.46 @ 50
us.rs-online.com	70981095	5.58	1	75	TE Connectivity	5.58 @ 25
Digi-Key	8853987	6.4992	1	25	TE Connectivity AMP Connectors	6.4992 @ 25
