TE Connectivity STV08

B00V3UBQAO

T-E Connectivity STV08 (2 pcs) 8 POS SIP SWITCH

T-E Connectivity STV08 (2 pcs) 8 POS SIP SWITCHzoom

Attributes

Key Value
Actuator ColorWhite
Actuator LevelFlush, Recessed
Actuator StyleSlide
Actuator TypeSlide (Standard)
Auto-InsertableNo
Base Product NumberSTV
Body MaterialPolyphenylene Sulfide (.
CategorySwitches
Centerline2.54 mm [ .1 in ]
CircuitSPST
Contact Base MaterialCopper Alloy
Contact Current Rating .1
Contact FinishGold
Contact MaterialCopper Alloy
Contact Mating Area Pla.Gold Flash
Current Rating (Amps)10mA
DescriptionSWITCH SLIDE DIP SPST 1.
Detailed DescriptionDip Switch SPST 8 Posit.
Digi-Key Part Number450-1640-ND
Electrical Life1,000 Cycles
Features-
Height6.22 mm [ .244 in ]
Height Above Board0.244" (6.20mm)
Housing ColorBlack
Housing MaterialPolyphenylene Sulfide (.
Length23.52 mm [ .926 in ], 0.
Low ProfileNo
ManufacturerTE Connectivity ALCOSWI.
Manufacturer Product Nu.STV08
Manufacturer Standard L.35 Weeks
Mechanical Life1,000 Cycles
MfrTE Connectivity ALCOSWI.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions8
Number of Switches8
Operating Temperature-30?C ~ 85?C
Operating Temperature R.-30 to 85
PackageTube
Pitch0.100" (2.54mm), Full
Product StatusActive
Product TypeSwitch
SealedNo
SeriesSTV
Solder Tail Contact Pla.Gold over Nickel
Switch TypeSIP
Termination Post Length3.6 mm [ .142 in ]
Termination StylePC Pin
UL Flammability RatingUL 94V-0
Voltage Rating5VDC
Voltage Rating (VDC)5
WashableYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowSTV080.7281334TE Connectivity0.728 @ 1

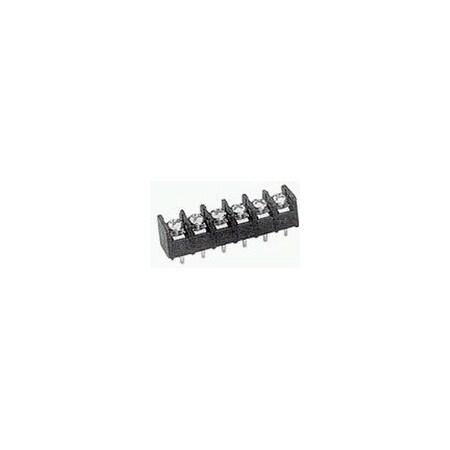

WaldomTE CONNECTIVITY ALCOSWITCH STV083.47208144TE CONNECTIVITY / ALCOSWITCH3.47 @ 20
Onlinecomponents.com1977104-43.852204120TE Connectivity3.852 @ 1
Newark75AC23505.9920In StockALCOSWITCH - TE CONNECTIVITY5.99 @ 10
thumbzoomDigi-Key16197128.07611458TE Connectivity ALCOSWITCH Switches8.076 @ 1
AmazonTPB00M1G6ME419.361In Stock2TE Connectivity / Alcoswitch19.36 @ 1
thumbzoomZoroG000967201101.81In StockAlcoswitch101.8 @ 1
