TE Connectivity / CII Brand M39016/9-018M

B00FV1SEJC

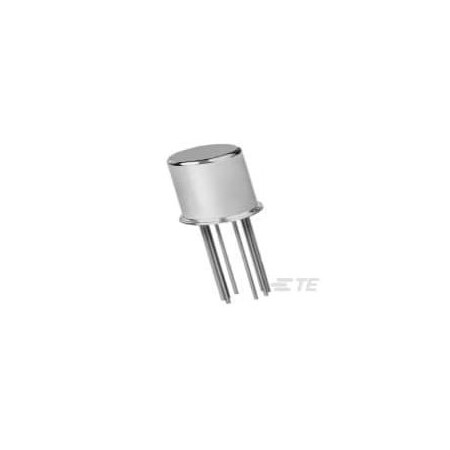

TE Connectivity / CII Brand M39016/9-018M Signal Relays (Dry to 3 Amps)

TE Connectivity / CII Brand M39016/9-018M Signal Relays (Dry to 3 Amps)zoom

Attributes

Key Value
CategoryRelays
cms-filter-header-bpnJMAW-26
cms-filter-header-mfrTE Connectivity Aerospa.
cms-filter-header-packa.Bulk
cms-filter-header-produ.Active
cms-filter-header-seriesMilitary, MIL-R-39016/9.
Coil Resistance1560 Ohms
Coil TypeNon Latching
Coil Voltage26.5VDC
Contact FormDPDT (2 Form C)
Contact MaterialSilver Palladium (AgPd).
Contact Rating (Current)1 A
Country of Origin (subj.India
DescriptionJMAW-26XM = M39016/9-01.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberJMAW-26XM-ND
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.JMAW-26XM
Manufacturer Standard L.cms-lead-weeks-value
Mounting TypeThrough Hole
Must Operate Voltage14.2 VDC
Must Release Voltage1.37 VDC
Operate Time2 ms
Operating Temperature-65?C ~ 125?C
Relay TypeGeneral Purpose
Release Time1.5 ms
Seal RatingSealed - Hermetically
Switching Voltage115VAC, 28VDC - Max
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Master ElectronicsM390169018M60.941167TE Connectivity / CII60.94 @ 1
Electro SonicM390169018M64.59641939TE Connectivity / CII64.5964 @ 1
thumbzoomDigi-Key606513065.63225TE Connectivity Aerospace, Defense and Marine65.63 @ 2
TTIM39016/9-018M66.13112TE Connectivity / CII66.13 @ 1
Newark35AC891669.41In StockAMP - TE CONNECTIVITY69.4 @ 1
thumbzoomZoroG00097521380.481In StockTe Connectivity80.48 @ 1
AvnetM39016/9-018M88.30159130TE Connectivity / CII88.30159 @ 1
Onlinecomponents.com1617125-696.01In StockTE Connectivity / AMP Brand96.0 @ 1
AmazonSCB00FRBOW6A142.741In StockTE Connectivity / AMP142.74 @ 1
