Attributes
| Key ^ | Value |
|---|---|
| Alternate Part No. | 571-1-1939638-4 |
| Application | Wire-to-Board |
| Applications | General Purpose, Industrial |
| Base Product Number | 1939638 |
| Brand | TE Connectivity / AMP |
| Category | Connectors, Interconnects |
| Connector Type | Header |
| Contact Finish - Mating, Contact Plating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post | 78.7?in (2.00?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating, Ingress Protection, Mated Stacking Heights, Overall Contact Length | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin, Tab |
| Country of Origin (subject to change) | China |
| Current Rating (Amps) | 3A |

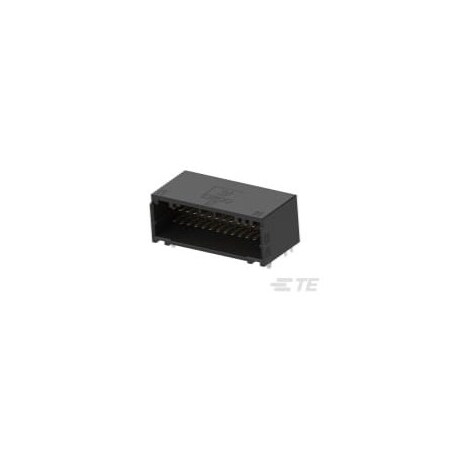

| Description | CONN HEADER R/A 28POS 2MM |
| Detailed Description | Connector Header Through Hole, Right Angle 28 position 0.079" (2.00mm) |
| Digi-Key Part Number | A127822-ND |
| Fastening Type | Detent Lock |
| Features | Board Lock |
| Housing Gender | Plug |
| Housing Material | Polyester |
| Insulation Color | Black |
| Insulation Height | 0.465" (11.80mm) |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Manufacturer | TE Connectivity |
| Manufacturer Part No., Manufacturer Product Number | 1-1939638-4 |
| Manufacturer Standard Lead Time | 40 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating | UL94 V-0 |
| Mounting Angle | Right |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 105?C |
| Package | Tube |
| Pitch | 2 mm |
| Pitch - Mating | 0.079" (2.00mm) |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing | 3.3 mm |
| Row Spacing - Mating | 0.130" (3.30mm) |
| Series | D-1000, Dynamic D-1100 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board or Cable |
| Termination | Solder |
| Termination Style | Through Hole |
| Tradename | DYNAMIC SERIES |
| Type | Shrouded |
| Voltage Rating | 125V, 125 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 1-1939638-4 | 3.88 | 3.88 | 1 | 73 | TE Connectivity / AMP Brand | 3.88 @ Qty: 1+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 1-1939638-4 | 4.12 | 27.192 | 15 | 16560 | TE CONNECTIVITY/AMP BRAND | 4.12 @ Qty: 15+ | |||
 | Zoro | G500937643 | 6.36 | 41.976 | 15 | In Stock | Te Connectivity | 6.36 @ Qty: 15+ | ||
 | Newark | 52Y1199 | 9.51 | 9.51 | 1 | In Stock | TE CONNECTIVITY | 9.51 @ Qty: 1+ | ||
 | Digi-Key | 5591389 | 9.516 | 9.516 | 1 | 540 | TE Connectivity AMP Connectors | 9.516 @ Qty: 1+ | ||
 | swatee.com | 1-1939638-4 | 9.72 | 9.72 | 1 | 157 | TE Connectivity | 9.72 @ Qty: 1+ |
