TE Connectivity / AMP 1-1986692-8

B010LBR4TM

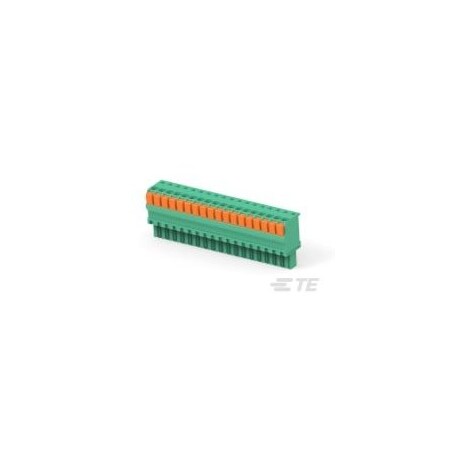

1-1986692-8, STR Plug Spring Type RH 18P, 3.50mm

1-1986692-8, STR Plug Spring Type RH 18P, 3.50mmzoom

Attributes

Key Value
Base Product Number1986692
CategoryConnectors, Interconnec.
ColorGreen
Contact MaterialCopper Alloy
Contact Mating FinishTin
Contact Tail Length-
Country of Origin (subj.Italy
Current - IEC-
Current - UL9 A
DescriptionTERM BLOCK PLUG 18POS S.
Detailed Description18 Position Terminal Bl.
Digi-Key Part NumberA104386-ND
FeaturesSide Stacking
Header Orientation-
Housing MaterialPolyamide (PA), Nylon
Ingress Protection-
Insulation Height0.459" (11.66mm)
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1986692-8
Manufacturer Standard L.42 Weeks
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions18
Operating Temperature-40?C ~ 110?C
PackageBulk
Pitch0.138" (3.50mm)
Plug Wire Entry180?
Positions Per Level18
Product StatusActive
Screw Size-
Series-
Termination StyleScrewless - Leg Spring,.
Torque - Screw-
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.14-30 AWG
Wire Gauge or Range - m.0.05-2mm?
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key317552211.451085TE Connectivity AMP Connectors11.45 @ 10
Onlinecomponents.com1-1986692-818.9150TE Connectivity / AMP Brand18.9 @ 1
thumbzoomNewark83T405419.95200In StockTE CONNECTIVITY19.95 @ 100
thumbzoomZoroG9009462072054.0100In StockTe Connectivity2054.0 @ 100
