TE Connectivity 3-641113-5

B00KSPJ09Y

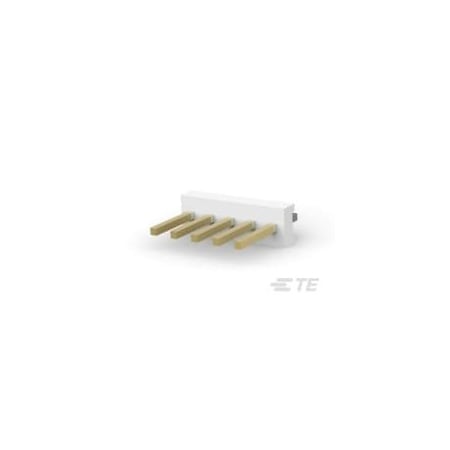

TE Connectivity Part Number 3-641113-5

TE Connectivity Part Number 3-641113-5zoom

Attributes

Key Value
Alternate Part No.571-3-641113-5
ApplicationWire-to-Board
ApplicationsGeneral Purpose, Indust.
Base Product Number641113
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating0.400" (10.16mm)
Contact Length - Post0.125" (3.18mm)
Contact MaterialCopper Alloy
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating7 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 5POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number3-641113-5-ND
Fastening Type-
Features-
Flammability RatingUL 94 V-0
Housing MaterialPolyester
Ingress Protection-
Insulation ColorNatural
Insulation Height0.125" (3.18mm)
Insulation MaterialThermoplastic
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.3-641113-5
Manufacturer Product Nu.3-641113-5
Manufacturer Standard L.22 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length0.650" (16.51mm)
PackageBulk
Pitch3.96 mm
Pitch - Mating0.156" (3.96mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SeriesMTA-156
ShroudingUnshrouded
StyleBoard to Cable/Wire
TerminationSolder
Termination Post Length3.18 mm
Termination StyleThrough Hole
TypeUnshrouded
Voltage Rating600VAC, 600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key18626391.20722100083TE Connectivity AMP Connectors1.20722 @ 1000
Onlinecomponents.com3-641113-51.511500TE Connectivity / AMP Brand1.51 @ 1
Newark96Y12181.7150058AMP - TE CONNECTIVITY1.71 @ 500
thumbzoomswatee.com3-641113-52.41327TE Connectivity2.4 @ 1
thumbzoomZoroG6009287322.53583Te Connectivity2.5 @ 35
AmazonSCB00KSPJ09Y450.46183TE Connectivity450.46 @ 1
