TE Connectivity 530776-1

B096L4NL6X

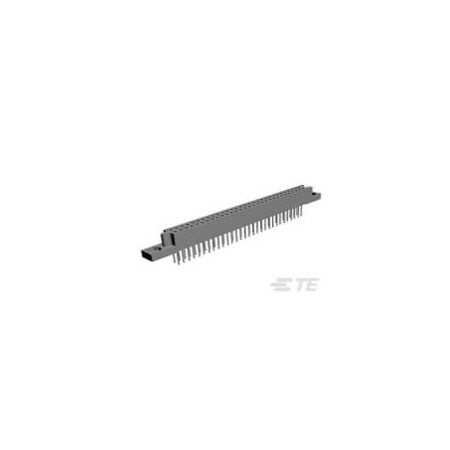

530776-1, Conn Board to Board RCP 30 POS 2.54mm Solder ST Top Entry Thru-Hole Package (1 Items)

530776-1, Conn Board to Board RCP 30 POS 2.54mm Solder ST Top Entry Thru-Hole Package (1 Items)zoom

Attributes

Key Value
Applications-
Base Product Number530776
CategoryConnectors, Interconnec.
ColorBlue
Connection MaterialBeryllium Copper
Connector Terminates ToPrinted Circuit Board
Connector TypeReceptacle
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thicknes.50.0?in (1.27?m)
Contact Finish Thicknes.-
Contact Length - Post0.325" (8.25mm)
Contact Material-
Contact Plating Thickne.50 ?in
Contact ShapeCircular
Contact TypeSocket, Female Socket
Current Rating (Amps)-
DescriptionCONN RCPT 30POS 0.1 GOL.
Detailed Description30 Position Receptacle .
Digi-Key Part Number530776-1-ND
Fastening TypePush-Pull
FeaturesMating Guide
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlue
Insulation Height0.400" (10.16mm)
Insulation MaterialDiallyl Phthalate (DAP)
ItemPCB Mount Receptacle
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.530776-1
Manufacturer Standard L.24 Weeks
Mated Stacking Heights-
MaterialDiallyl Phthalate
Material Flammability R.-
MfrTE Connectivity Aerospa.
Mounting TypeThrough Hole
Number of Contacts30
Number of Positions30
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
PackageBulk
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesMilitary, MIL-DTL-55302.
StyleBoard to Board
Terminal FinishTin-Lead Plated
Terminal TypeThrough Hole
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 530776-152.362197TE CONNECTIVITY/AMP BRAND52.36 @ 2
thumbzoomDigi-Key5262109111.091197TE Connectivity Aerospace, Defense and Marine111.09 @ 1
Allied ElectronicsE5340302114.531219TE Connectivity114.53 @ 1
thumbzoomZoroG901043684114.991In StockTe Connectivity114.99 @ 1
Newark36AC5906116.511197AMP - TE CONNECTIVITY116.51 @ 1
Onlinecomponents.com530776-1145.881219TE Connectivity / AMP Brand145.88 @ 1
