TE Connectivity / AMP 825457-5

B00FRC0IEY

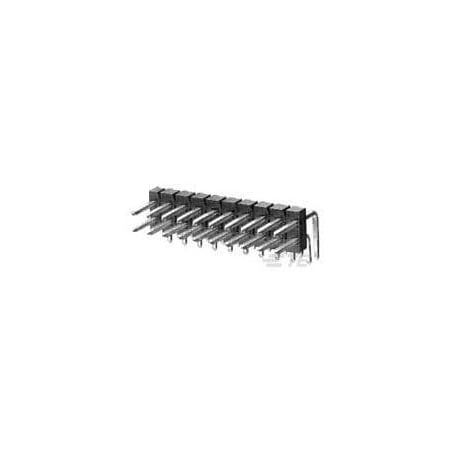

TE Connectivity / AMP Brand 825457-5 Connector Headers and PCB Receptacles

TE Connectivity / AMP Brand 825457-5 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Applications-
Base Product Number825457
CategoryConnectors, Interconnec.
ColorGreen
Connection MaterialBrass, Copper-Zinc
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader, Breakaway
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.3.90?in (0.099?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.264" (6.70mm)
Contact Length - Post0.126" (3.20mm)
Contact MaterialBrass
Contact Plating Thickne.30 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating (Amps)-
DescriptionCONN HEADER R/A 10POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number825457-5-ND
Fastening TypePush-Pull
FeaturesWith Strain Relief, -
Flammability RatingUL 94 V-0
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorGreen
Insulation Height0.197" (5.00mm)
Insulation MaterialPolybutylene Terephthal.
ItemPCB Mount Header
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.825457-5
Manufacturer Standard L.23 Weeks
Mated Stacking Heights-
MaterialGlass-Filled PBT
Material Flammability R.UL94 V-0
Max. Temp.105?C
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageBulk
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU Mod II
ShroudingUnshrouded
StandardsCSA LR7189; CUL E28476
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
TypeBreakaway
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 825457-50.78019704TE CONNECTIVITY/AMP BRAND0.7 @ 80
us.rs-online.com720514900.893000112TE Connectivity0.89 @ 3000
Onlinecomponents.com825457-50.92118274TE Connectivity / AMP Brand0.92 @ 1
thumbzoomDigi-Key22760771.088019984TE Connectivity AMP Connectors1.08 @ 80
thumbzoomTME825457-51.381117TE Connectivity1.38 @ 1
Newark96Y48181.75119316AMP - TE CONNECTIVITY1.75 @ 1
thumbzoomZoroG50095718489.251In StockTe Connectivity89.25 @ 1
