mpn:
manufacturer:
MPN:
Preferred Price:
5.23
Price:
5.23
Min Simple Price:
2.11364
Absolute Min Price:
4.09
Min Price:
4.09
Dimensions:
[1.0, 1.0, 1.0]
qty:
47
simpleSku:
NjI5OA:::826656-9
sku:
NjI5OA::9G:826656-9@y0
condition:
11
seller:
Digi-Key
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Applications | - |
| Base Product Number | 826656 |
| Category | Connectors, Interconnects |
| Color | Green |
| Connection Material | Phosphor Bronze |
| Connector Terminates To | Printed Circuit Board |
| Connector Type | Header, Breakaway |
| Contact Finish | Gold Plated |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3.90?in (0.099?m) |
| Contact Finish Thickness - Post | 118.1?in (3.00?m) |
| Contact Length - Mating | 0.228" (5.80mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Contact Material | Brass |
| Contact Plating Thickness | 0.8 ?m |
| Contact Shape | Square |
| Contact Type | Male Pin, Pin |
| Current Rating | 5 A |
| Current Rating (Amps) | 5A |

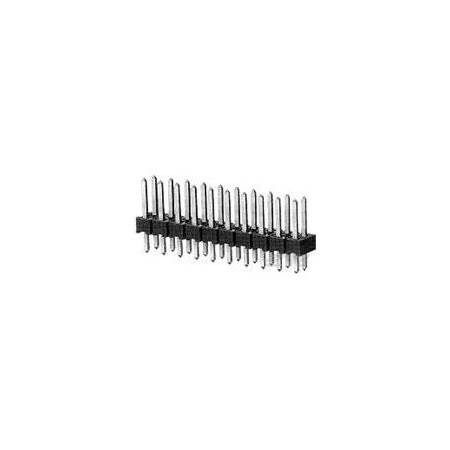

| Description | CONN HEADER VERT 18POS 2.54MM |
| Detailed Description | Connector Header Through Hole 18 position 0.100" (2.54mm) |
| Digi-Key Part Number | 826656-9-ND |
| Fastening Type | Push-Pull |
| Features | - |
| Flammability Rating | UL 94 V-0 |
| Hole Center to Center | 2.54 mm |
| Ingress Protection | - |
| Insulation Color | Green |
| Insulation Height | 0.110" (2.79mm) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Item | PCB Mount Header |
| Manufacturer | TE Connectivity AMP Connectors |
| Manufacturer Product Number | 826656-9 |
| Mated Stacking Heights | - |
| Material | PBT |
| Material Flammability Rating | UL94 V-0 |
| Max. Temp. | 105?C |
| Mfr | TE Connectivity AMP Connectors |
| Mounting Type | Through Hole |
| Number of Contacts | 18 |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -65?C ~ 105?C |
| Overall Contact Length | 0.465" (11.81mm) |
| Package | Bulk |
| Package Quantity | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Series | AMPMODU Mod II |
| Shrouding | Unshrouded |
| Style | Board to Board or Cable |
| Terminal Finish | Tin Plated |
| Terminal Type | Through Hole |
| Termination | Solder |
| Type | Breakaway |
| Voltage Rating | - |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Digi-Key | 2276216 | 2.11364 | 2549.04984 | 3000 | 10 | TE Connectivity AMP Connectors | 2.11364 @ Qty: 3000+ | ||
| Newark | 16H7694 | 2.35 | 2834.1 | 3000 | 10 | AMP - TE CONNECTIVITY | 2.35 @ Qty: 3000+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 826656-9 | 2.37 | 2858.22 | 3000 | 109 | TE CONNECTIVITY/AMP BRAND | 2.37 @ Qty: 3000+ | |||
| us.rs-online.com | 72051638 | 2.52 | 3039.12 | 3000 | 10 | TE Connectivity | 2.52 @ Qty: 3000+ | |||
| Onlinecomponents.com | 826656-9 | 2.82 | 18.048 | 1 | 250 | TE Connectivity / AMP Brand | 2.82 @ Qty: 10+ | |||
 | Zoro | G501044678 | 66.96 | 428.544 | 1 | 10 | Te Connectivity | 66.96 @ Qty: 10+ |
