TE Connectivity / AMP 826664-5

B00FRBOPGW

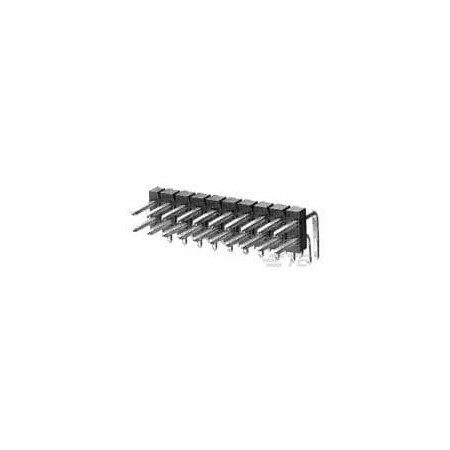

TE Connectivity / AMP Brand 826664-5 Connector Headers and PCB Receptacles

TE Connectivity / AMP Brand 826664-5 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.571-826664-5
Applications-
Base Product Number826664
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.3.90?in (0.099?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact GenderPin (Male)
Contact Length - Mating0.315" (8.00mm)
Contact Length - Post0.126" (3.20mm)
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Switzerland
Current Rating (Amps)5A
DescriptionCONN HEADER R/A 10POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number826664-5-ND
Fastening TypePush-Pull
Features-
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorGreen
Insulation Height0.219" (5.56mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.826664-5
Manufacturer Product Nu.826664-5
Manufacturer Standard L.23 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Mating Post Length8 mm
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Positions10
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU MOD II
ShroudingUnshrouded
StyleBoard to Board or Cable
TerminationSolder
Termination Post Length3.2 mm
Termination StyleThrough Hole
TradenameAMPMODU
TypeBreakaway
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key22762560.67389360025TE Connectivity AMP Connectors0.67389 @ 3600
Future ElectronicsC0129480220.69360025TE Connectivity0.69 @ 3600
Newark16H77140.762360025AMP - TE CONNECTIVITY0.762 @ 3600
us.rs-online.com720517470.78360025TE Connectivity0.78 @ 3600
thumbzoomZoroG3010447171.0180025135Te Connectivity1.0 @ 1800
Onlinecomponents.com826664-51.361408TE Connectivity / AMP Brand1.36 @ 25
thumbzoomswatee.com826664-51.691125TE Connectivity1.69 @ 25
